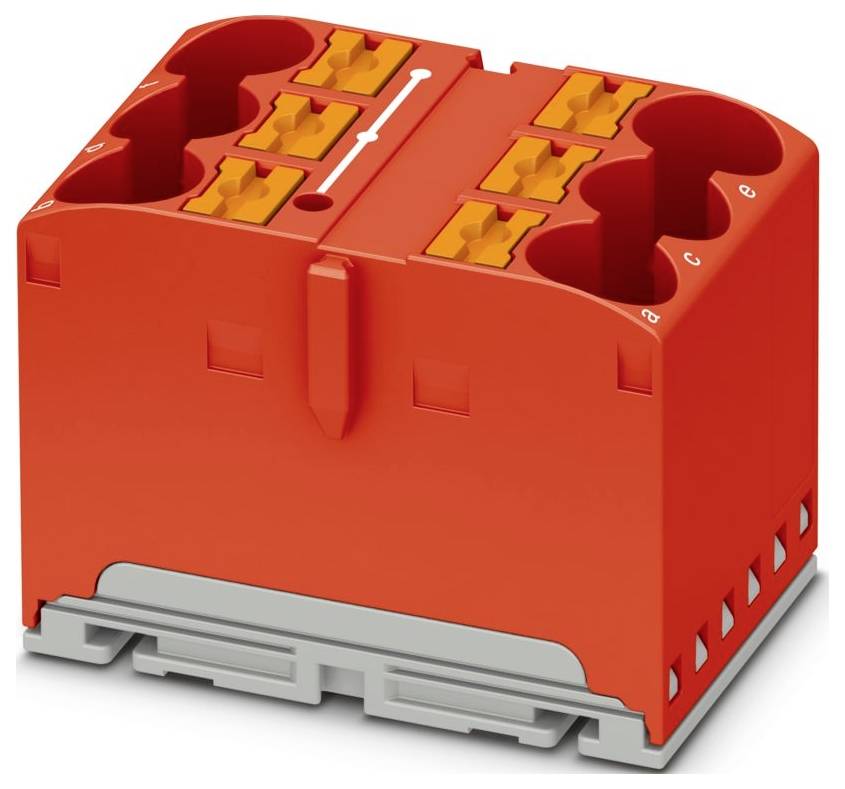

Phoenix Contact 1082389 Distribution block Red 10 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Content
10 pc(s)
Datasheet (PDF)
Technical specifications
- Cover plate required: No.
- Number of clamping points per level: 6
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:57 A.
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Material of the insulating body: Other
- Product type
Distribution block
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Number of pins
6
- Factory colour
Red
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
450 V
- Manufacturer part #
1082389
- Content
10 pc(s)
- Type
PTFIX 6X10/S RD
- Dim
(W x H x D) 37 x 24.5 x 25.1 mm
- Width
37 mm
- Height
24.5 mm
- Flammability rating
V0
- Depth
25.1 mm
- Rated voltage
450 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563072 Phoenix Contact 1082389 Distribution block Red 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3563072 Phoenix Contact 1082389 Distribution block Red 10 pc(s)
Description
Distributor block, internally bridged, rated voltage: 450 V, rated current: 57 A, number of connections: 6, connection type: Push-in connection, rated cross-section : 10 mm², cross-section: 0.5 mm² - 16 mm², mounting type: Snap-on rail adapter, direct mounting with flange, flying, color: Red
