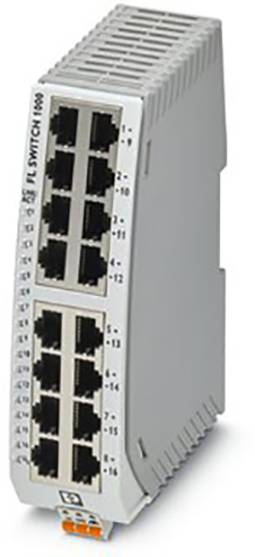

Phoenix Contact 1085255 FL SWITCH 1016N Industrial Ethernet switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Basic functionality: Unmanaged switch
- Autonegotiation
- Store-and-forward switching mode
- Additional functions: 100 BASE-TX/100BASE-FX (IEEE 802.3u)
- Prioritization by Quality of Service (QoS) (IEEE 802.1p)
- Energy-efficient Ethernet (IEEE 802.3az)
- 10BASE-T (IEEE 802.3)
- Mounting type: Mounting rail
- Connection type: Push-in spring connection
- Conductor cross-section min: 0.2 mm²
- Conductor cross-section max. 2.5 mm²
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- 10/100 Mbps ports
16 x
- Power supply (LOV)
via terminal
- Weight
266 g
- Width
40 mm
- Height
92.4 mm
- Depth
84 mm
- Type
FL SWITCH 1016N
IP30
- Operating voltage
24 V DC
- Current consumption
Typical 68 mA
maximum: 266 mA
- Max. ambient temperature
-10 °C
- Min. ambient temperature
+60 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2436061 Phoenix Contact 1085255 FL SWITCH 1016N Industrial Ethernet switch
User & Safety Instructions
User & Safety Instructions 2436061 Phoenix Contact 1085255 FL SWITCH 1016N Industrial Ethernet switch
Description
Slim Ethernet switch, sixteen RJ45 ports with 10/100 MBit/s on all ports, automatic detection of the transmission speed, autocrossing function and QoS
The detection of auto-negotiation and auto-crossing simplifies installation and setup
Local diagnostic indicators with LEDs
RJ45 ports support 10/100 MBit/s transfer rate
Quality of Service (QoS)-prioritized messages
PROFINET Conformance Class A for real-time data exchange
Energy Efficient Ethernet according to IEEE 802.3az
PROFINET PTCP filter for reliable communication in PROFINET networks
Improved traffic prioritization for automation protocols
This text is machine translated.
The detection of auto-negotiation and auto-crossing simplifies installation and setup
Local diagnostic indicators with LEDs
RJ45 ports support 10/100 MBit/s transfer rate
Quality of Service (QoS)-prioritized messages
PROFINET Conformance Class A for real-time data exchange
Energy Efficient Ethernet according to IEEE 802.3az
PROFINET PTCP filter for reliable communication in PROFINET networks
Improved traffic prioritization for automation protocols
