Phoenix Contact 1085658 eMobility charging cable 5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of communication managers: 2
- Vehicle side version: Type 1 CCS
- Cable type: Straight
- Contact material: Other
- Charging mode: Mode 4
- With temperature sensor: No.
- Nominal current: 500 A
- Surface treatment contacts: Other
- Current type DC
- Product type
eMobility charging cable
- Type A
Open cable ends
- Type B
Type 1
- Charging mode
Mode 4
- Cable length
5 m
- Nominal voltage
1000 V
- Nominal current
500 A
- Nominal current - rounded value
500 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563136 Phoenix Contact 1085658 eMobility charging cable 5 m
User & Safety Instructions
User & Safety Instructions 3563136 Phoenix Contact 1085658 eMobility charging cable 5 m
Description

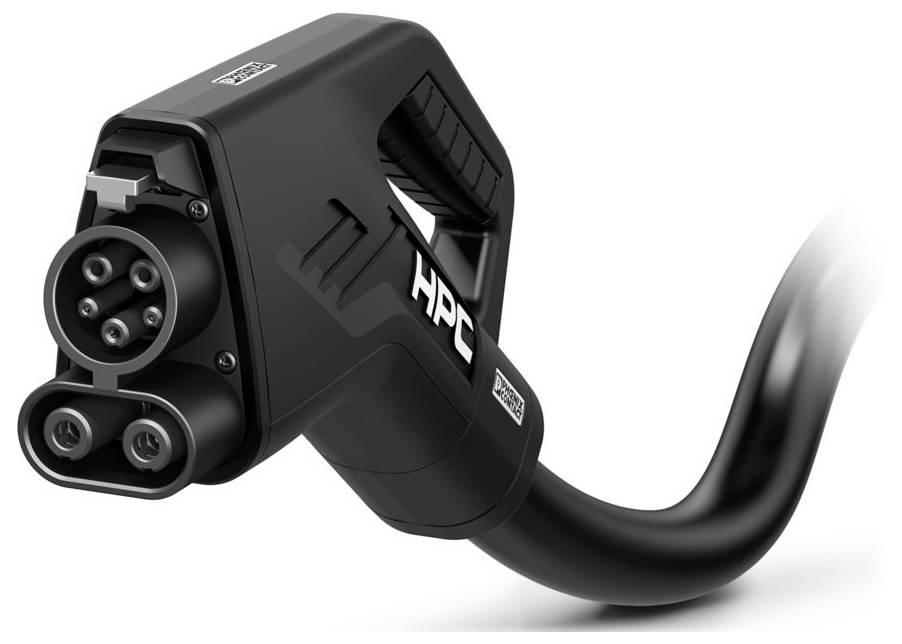

CHARX connect professional, CCS type 1, HPC DC charge lead, up to 700 A in Boost mode, 500 A continuous, 1000 V DC, with cooled vehicle charging plug and cooled wire, cable: 5 m, black, straight, with charge plug bracket, with interchangeable facing frame, without wall ducts, Phoenix Contact logo, SAE J1772, IEC 62196-3-1, For charging with direct current (DC) from electric vehicles (EV)
