Buy Phoenix Contact 1086465 Continuity Screw terminal Grey 1 pc(s)

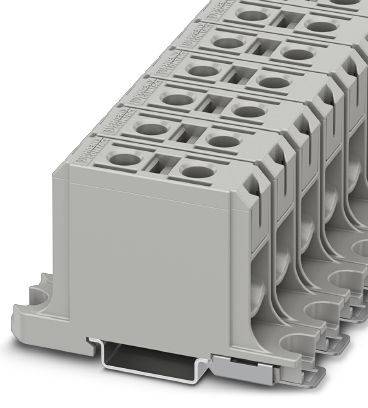

Image similar

Product type

Continuity

Connection

Screw terminal

Cross section (flexible) (max.)

50 mm²

Cross section (inflexible) (max.)

50 mm²

Nominal current - rounded value

145 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Design: Terminal block for aluminum and copper conductors (AL-CU)
Number of ports: 2
Potential: 1
Nominal cross-section: 50 mm²
Dimensioning surge voltage: 8 kV
Over voltage category III
Insulation material group: II.
Ambient temperature (operation): -60 °C ... 85 °C
Ambient temperature (storage/transport): -25 °C ... 55 °C
Ambient temperature (assembly): -5 °C ... 70 °C
Ambient temperature (actuation): -5 °C ... 70 °C
Maximum load current: 145 A (at 50 mm² cross section - test current according to IEC 61238-1)
Open side wall: No.
Height NS 35/7.5: 51 mm
Height NS 35/15: 58.5 mm
Screw thread: M10
Conductor cross-section flexible m. Wire-end sleeve without plastic sleeve min. 2.5 mm²
Conductor cross-section flexible m. Wire-end sleeve without plastic sleeve max. 35 mm²
Conductor cross-section flexible m. Ferrule w. Plastic sleeve min. 2.5 mm²
2 conductors of the same cross-section flexible min. 1.5 mm²
2 conductors of the same cross-section flexible max. 16 mm²
