Buy Phoenix Contact 1086499 Continuity Screw terminal Blue 1 pc(s)

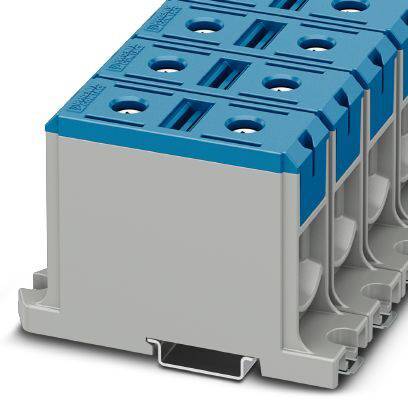

Image similar

Product type

Continuity

Connection

Screw terminal

Cross section (flexible) (max.)

150 mm²

Cross section (inflexible) (max.)

150 mm²

Nominal current - rounded value

290 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Design: Terminal block for aluminum and copper conductors (AL-CU)
Number of ports: 2
Potential: 1
Nominal cross-section 150 mm²
Dimensioning surge voltage: 8 kV
Over voltage category III
Insulation material group: II.
Ambient temperature (operation): -60 °C ... 85 °C
Ambient temperature (storage/transport): -25 °C ... 55 °C
Ambient temperature (assembly): -5 °C ... 70 °C
Ambient temperature (actuation): -5 °C ... 70 °C
Maximum load current: 290 A (at 150 mm² cross section - test current according to IEC 61238-1)
Open side wall: No.
Height NS 35/7.5 67 mm
Height NS 35/15: 74.5 mm
Screw thread: M18
Conductor cross-section flexible m. Wire-end sleeve without plastic sleeve min. 35 mm²
Conductor cross-section flexible m. Wire-end sleeve without plastic sleeve max. 120 mm²
Conductor cross-section flexible m. Ferrule w. Plastic sleeve min. 35 mm²
2 conductors of the same cross-section flexible min. 35 mm²
2 conductors of the same cross-section flexible max. 50 mm²
