Buy Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

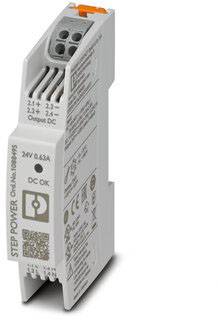

Compact DIN rail power supply unit with 24V output and 0.63A. Labelled 'STEP POWER'. Plug connections and indicator light present.

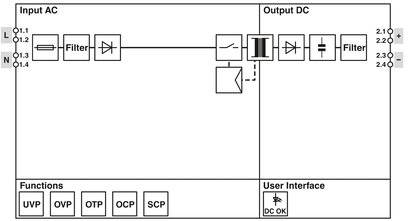

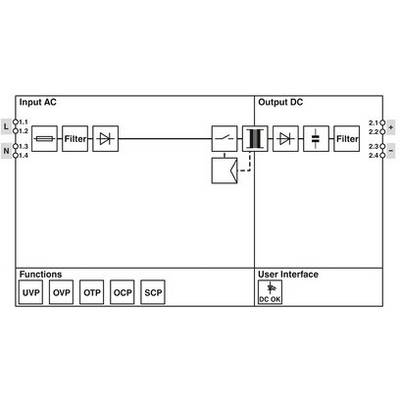

'Block diagram of a power supply: AC input, Filter, Rectifier, Transformer, Filter, DC output. Functions: UVP, OVP, OTP, OCP, SCP. User interface: DC OK.'

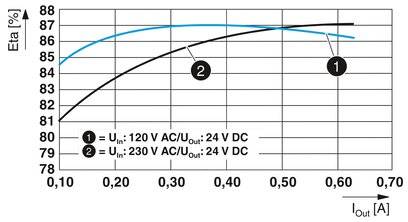

'Diagram shows the efficiency curve of a power supply. Two lines for different input voltages (120 V and 230 V). Efficiency increases with the output current I_out [A].'

Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)-3

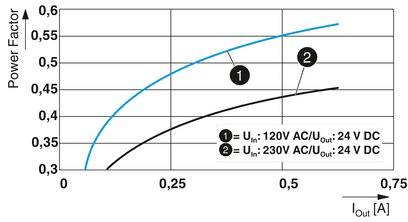

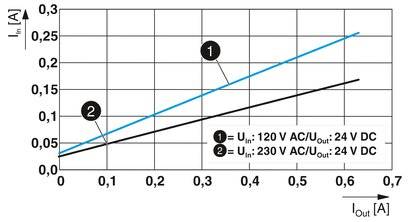

Diagram with power factor on the Y-axis and current (A) on the X-axis. Two curves show differences at 120V and 230V input.

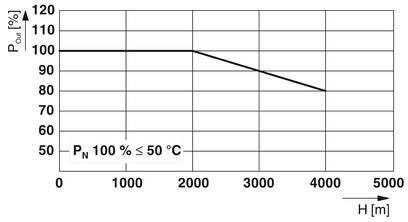

Graph shows the power reduction of an engine in percentage (P_out) against altitude (H) in metres. Power remains at 100% up to 1000 m, decreasing to 80% at 4000 m.

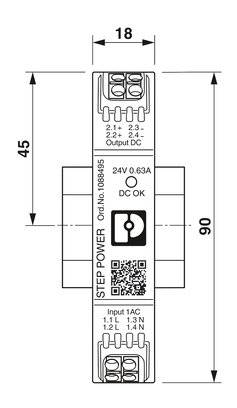

'STEP POWER Order No. 1088645' Power Supply Unit, DIN Rail Mounting, 24V, 0.63A. Dimensions: Width 18 mm, Height 90 mm, Depth 45 mm.

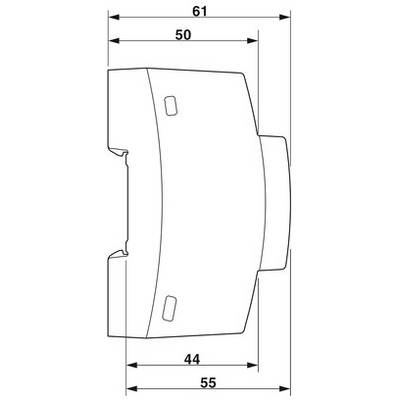

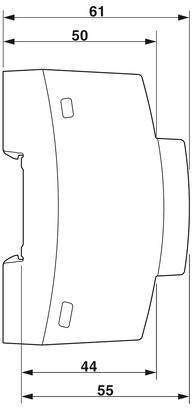

Technical drawing of a component with dimensions: Width 61 mm, upper width 50 mm, lower width 55 mm, height 44 mm.

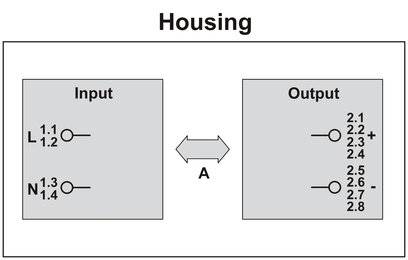

The diagram shows an electrical connection between 'Input' and 'Output' within an enclosure. There is a circuit 'A' in between.

1/9

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

42 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 32.76 / piece)

€ 41.17

-20 %

€ 32.76

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Power supply STEP-PS

Power increase up to 100%
Connection direction conductor / board: 45°
EN-60335 certification
Reduction of width by 1 TE
Efficiency 94 %
No-load losses <: 0.1 W

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
90 - 250 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 120 V AC

Output voltage: 24 V DC

Input voltage: 85 - 264 V/AC / 90 - 250 V DC

Input voltage (max.): 230 V AC

Max. output current: 0.63 A

Output current (max.) - rounded: 630 mA

: 15 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Push-in connector

Dim: (L x W x H) 61 x 18 x 90 mm

Weight: 0.070 kg

Output voltage (max.): 25 V DC

Output voltage (min.): 22.5 V DC

Manufacturer part #: 1088495

Content: 1 pc(s)

PSU features: Regulated

Width: 18 mm

Height: 90 mm

Length: 61 mm

: IP20

Max. temperature: 70 °C

Min. temperature: -10 °C

Type: STEP3-PS/1AC/24DC/0.63/PT

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435744

This article

15 W

Push-in connector

230 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

630 mA

120 V AC

Phoenix Contact 1088494 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2435745

30 W

Push-in connector

230 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

1.3 A

120 V AC

Phoenix Contact 1088491 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:2435746

60 W

Push-in connector

230 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

2.5 A

120 V AC

Phoenix Contact 1140066 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:2435747

96 W

Push-in connector

230 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

4 A

120 V AC

Phoenix Contact 1088478 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2435748

120 W

Push-in connector

230 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

5 A

120 V AC

Phoenix Contact 1170954 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435749

15 W

Push-in connector

230 V AC

5 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

3 A

120 V AC

Phoenix Contact 1170952 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 12 V DC 1.3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435750

15 W

Push-in connector

230 V AC

12 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

1.3 A

120 V AC

Phoenix Contact 1170953 Rail mounted PSU (DIN) Consumption (standby) 0.1 W 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2435751

30 W

Push-in connector

230 V AC

12 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

2.5 A

120 V AC

Phoenix Contact 2868635 Rail mounted PSU (DIN) 24 V DC 0.83 A 18 W No. of outputs:1 x Content 1 pc(s)

Item no:511731

18 W

Screw terminal

264 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC90 - 250 V/DC

830 mA

85 V AC

Phoenix Contact 2868648 Rail mounted PSU (DIN) 24 V DC 1.9 A 42 W No. of outputs:1 x Content 1 pc(s)

Item no:511732

42 W

Screw terminal

264 V AC

24 V DC

Adjustable

115 V/AC230 V/AC90 - 250 V/DC

1.9 A

85 V AC

Documents & Downloads

Datasheet

Datasheet 2435744 Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2435744 Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Description

The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output there are 24 V/DC and max. 0.5 A are available. Through the high degree of efficiency and low standby losses a high level of energy efficiency is achieved.

Features

Worldwide use of wide-range output and international approval package
High operational reliability thanks to high MTBF >500 000 h
Parallel switch bar for increased output and redundancy
Simplified operation by LED fault monitoring
High reliability through long mains buffering times> 20 ms
Snapped onto the DIN rail or screwing-on on flat surface.

What kind of DIN Rail PSUs are you looking for?

24V DIN rail PSU
DIN rail-mount PSU
