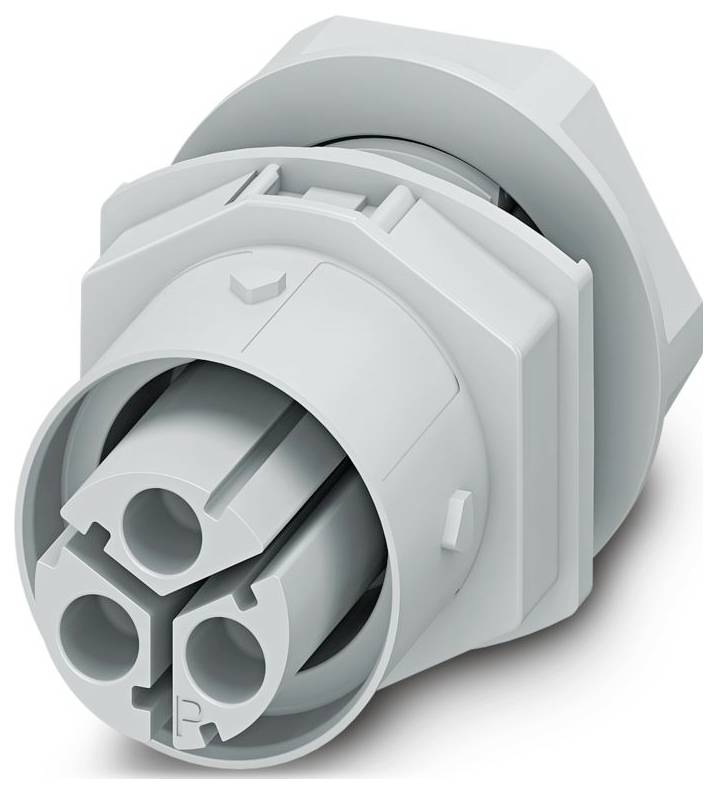

Phoenix Contact 1088689 Feedthrough
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of connections per pin:1
- Built-in version: Built-in part/connector
- Colour of the coding/contact insert: Other
- Thread connection dimension M20
- Halogen-free: No.
- Mechanical coding: Yes
- Surface treatment contacts: Silver-plated
- Pole identification L, N, PE
- Number of poles: 3
- Material of housing: Polyamide (PA)
- Product type
Feedthrough
- Type A
Socket
- Connection
Push-in wire connector
- Rated voltage
500 V
- Test current
20 A
- Cable Ø (max.)
2.5 mm²
- Cable Ø up to
0.5 mm²
- Cable Ø range
0.5 - 2.5 mm²
- Mounting type
Wall
- Number of pins
3
IP66
- Height
28.498247 mm
- Length
43.45 mm
- Width
28.498247 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563433 Phoenix Contact 1088689 Feedthrough
User & Safety Instructions
User & Safety Instructions 3563433 Phoenix Contact 1088689 Feedthrough
Description
Wall ducts, for connectors, product family: IPD, connection type: Push-in connection, pin number: 2+PE, M20, socket, 0.5 mm² ... 2.5 mm², 500 V, 20 A, PA, light gray, Coding: P
