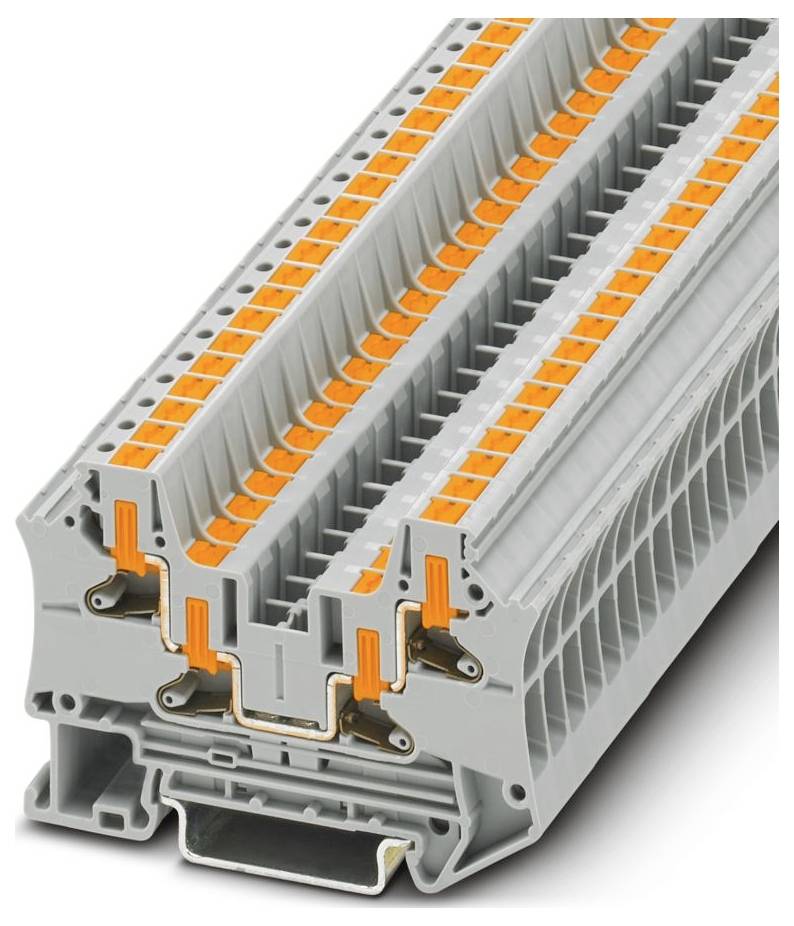

Phoenix Contact 1088734 Continuity Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Highlights & Details
Feed-through terminal
- PTV 4-QUATTRO
Technical specifications
- Cover plate required: Yes
- Suitable for single wire cross sections of 0.2-6 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.2 to 0.2 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.2-6 mm²
- Number of clamping points per level: 4
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:32 A.
- Operating temperature 60-110 °C
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Explosion-tested version "Ex e": Yes
- Suitable for conducting material: Aluminium/copper
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Product type
Continuity
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
4
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
1088734
- Content
50 pc(s)
- Type
PTV 4-QUATTRO
- Dim
(W x H x D) 6.2 x 69.2 x 45.7 mm
- Width
6.2 mm
- Height
69.2 mm
- Flammability rating
V0
- Depth
45.7 mm
- Rated voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563613 Phoenix Contact 1088734 Continuity Push-in connector Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3563613 Phoenix Contact 1088734 Continuity Push-in connector Grey 50 pc(s)
Description
Continuity terminal, rated voltage: 1000 V, rated current: 32 A, number of connections: 4, connection type: Push-in connection, rated cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting type : NS 35/7.5, NS 35/15, color: Grey
