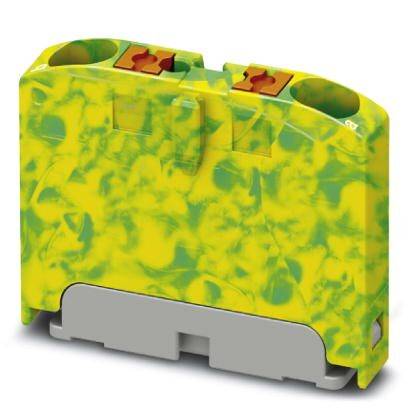

Phoenix Contact 1091665 Green, Yellow 50 pc(s)
EAN:
Part number:
Item no:
Factory colour
Green
Yellow
AWG max.
12
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W) 28.6 mm x 5.2 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width: 5.2 mm
- Number of floors: 1
- Number of ports: 2
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.77 W.
- Maximum load current 32 A.
- Open side wall: No.
- Factory colour
Green
Yellow
- AWG max.
12
- Stripping length
8 mm
- Stripping length (max.)
10 mm
- Dim
(L x W) 28.6 mm x 5.2 mm
- Connection
Push-in connector
- Manufacturer part #
1091665
- Content
50 pc(s)
- Nominal voltage
450 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Width
5.2 mm
- Length
28.6 mm
- Type
PTFIX 2X2,5 GNYE
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2141007 Phoenix Contact 1091665 Green, Yellow 50 pc(s)
Datasheet 2141007 Phoenix Contact 1091665 Green, Yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2141007 Phoenix Contact 1091665 Green, Yellow 50 pc(s)
Description
Distributor block, base terminal, nominal voltage: 450 V, nominal current: 24 A, connection type: Push-in connection, number of connections: 2, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 21.7 mm, color: Green/yellow, mounting type: Flying, direct mounting with flange, glue
