Phoenix Contact 1091668 Green, Yellow 10 pc(s)
EAN:
Part number:
Item no:
Factory colour
Green
Yellow
AWG max.
12
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W) 28.6 mm x 16 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 3.02 / piece)
€ 30.24
plus VAT.
Only 2 Set(s) available
Technical specifications
- Flammability class according to UL 94: V0
- Width: 16 mm
- Number of floors: 1
- Number of ports: 6
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.77 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
- Maximum load current 32 A.
- Open side wall: No.
- Total current max. 48 A.
- Factory colour
Green
Yellow
- AWG max.
12
- Stripping length
8 mm
- Stripping length (max.)
10 mm
- Dim
(L x W) 28.6 mm x 16 mm
- Connection
Push-in connector
- Manufacturer part #
1091668
- Content
10 pc(s)
- Nominal voltage
450 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Width
16 mm
- Length
28.6 mm
- Type
PTFIX 6X2,5 GNYE
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2140985 Phoenix Contact 1091668 Green, Yellow 10 pc(s)
Datasheet 2140985 Phoenix Contact 1091668 Green, Yellow 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2140985 Phoenix Contact 1091668 Green, Yellow 10 pc(s)
Description

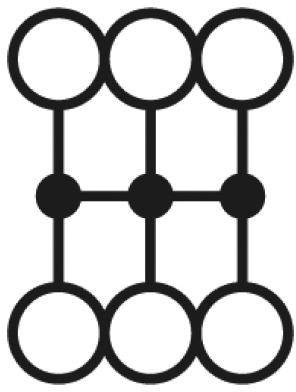

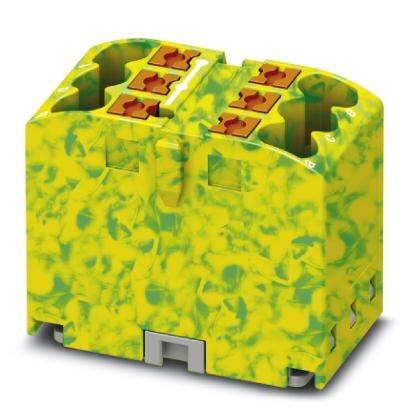

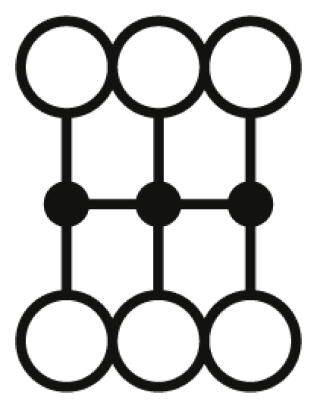

Distributor block, basic terminal, the blocks can be bridged to one another via the conductor shaft. Suitable jumpers see accessories, nominal voltage: 450 V, nominal current: 24 A, connection type: Push-in connection, number of connections: 6, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 16 mm, height: 21.7 mm, color: Green/yellow, mounting type: Flying, direct mounting with flange, glue
