Buy Phoenix Contact 1091669 Green, Yellow 10 pc(s)

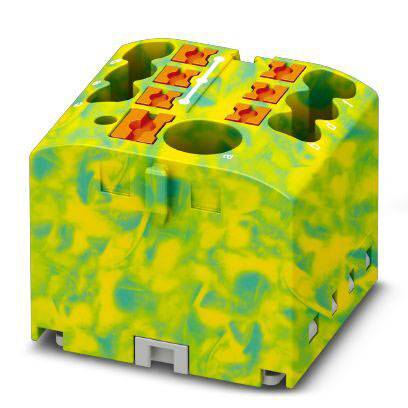

A yellow, neon green and orange electrical connector with visible contacts and distinctive colour patterns.

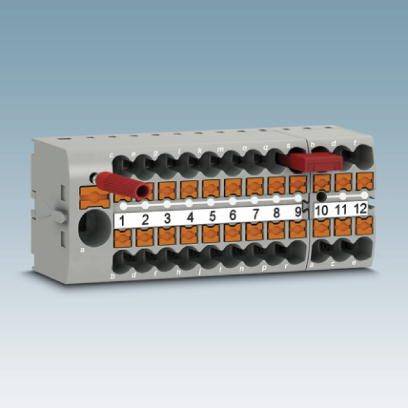

Electrical terminal block with 12 numbered connections, two red cables in connections 3 and 9, against a grey background.

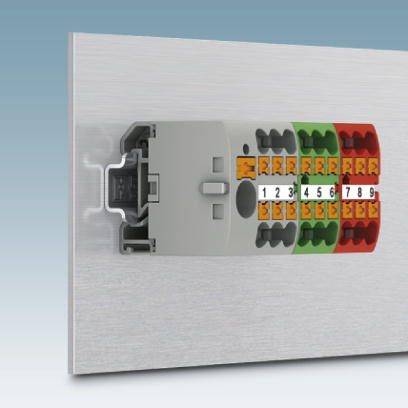

An electrical terminal block with numbers 1 to 9, colour-coded in orange, green, and red, mounted on a grey wall.

Modular electrical socket mounted on a metal plate, with eight colour-coded connections, numbered from 1 to 8.

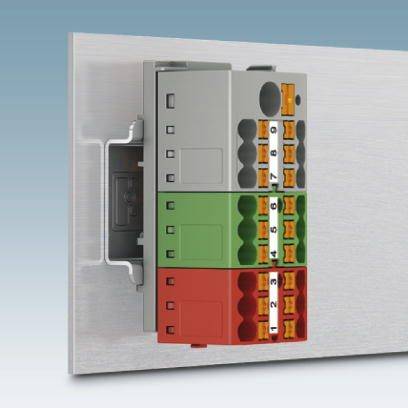

Connector unit with colour-coded and numbered electrical connections, mounted on a metal plate.

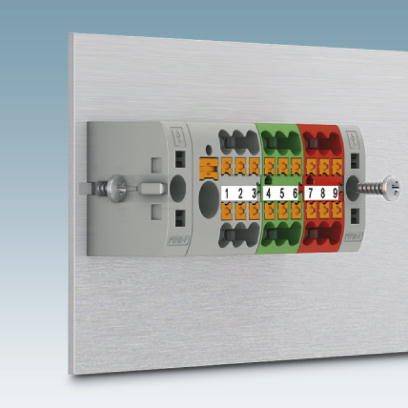

A series of numbered terminals in various colours (Grey, Red, Green) on a metal plate for electrical connection.

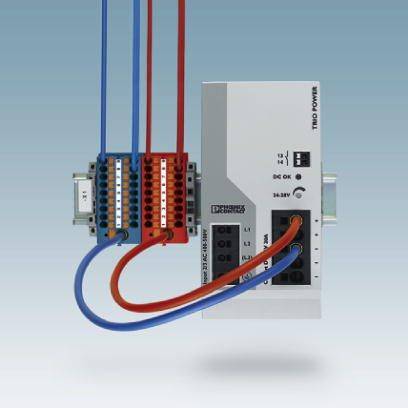

Electronic device connected with several colourful cables. A DIN rail module shows various connections and a display.

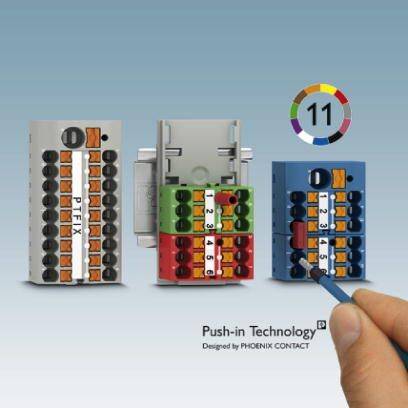

Three electrical terminal blocks with colour coding and labelling. A hand is pointing to the rightmost terminal block with a blue pen.

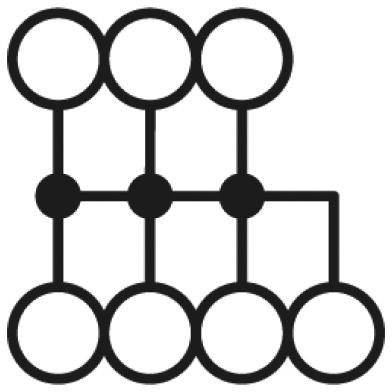

Pictogram of gears in a manual transmission, showing a schematic arrangement for manual shifting in a vehicle.

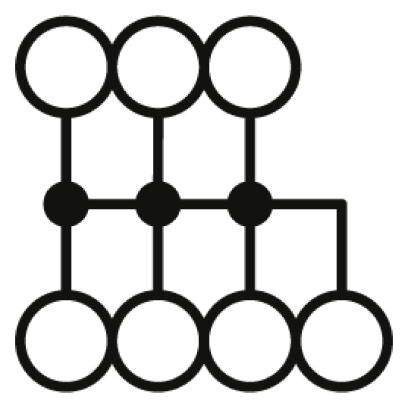

'Illustration of a stylised geometric pattern of circles and lines forming an abstract shape.'

1/10

Factory colour

Green

Yellow

AWG max.

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W) 28.6 mm x 25.6 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Flammability class according to UL 94: V0
Width: 25.6 mm
Number of floors: 1
Number of ports: 7
Potential: 1
Insulating material: PA
Dimensioning surge voltage: 6 kV
Pollution level 3
Over voltage category III
Insulating material group: I
Maximum power loss at rated condition: 1.31 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
Maximum load current: 32 A (at 4 mm² conductor cross-section)
Open side wall: No.
Connection: Feed floor
Total current maximum: 57 A (at 10 mm² conductor cross-section)

Factory colour: Green
Yellow

AWG max.: 12

Stripping length: 8 mm

Stripping length (max.): 10 mm

Dim: (L x W) 28.6 mm x 25.6 mm

Connection: Push-in connector

Manufacturer part #: 1091669

Content: 10 pc(s)

Nominal voltage: 450 V

Nominal current: 24 A

Nominal current - rounded value: 24 A

Width: 25.6 mm

Length: 28.6 mm

Type: PTFIX 6/6X2,5 GNYE

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.14 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2141034 Phoenix Contact 1091669 Green, Yellow 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2141034 Phoenix Contact 1091669 Green, Yellow 10 pc(s)

Description

Distribution block, basic terminal with infeed, the blocks can be bridged to one another via the conductor shaft. Suitable jumpers see accessories, nominal voltage: 450 V, nominal current: 24 A, connection type: Push-in connection, push-in connection, number of connections: 7, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 25.6 mm, height: 21.7 mm, color: Green/yellow, mounting type: Flying, direct mounting with flange, glue

This text is machine translated.
