Buy Phoenix Contact 1091670 Green, Yellow 8 pc(s)

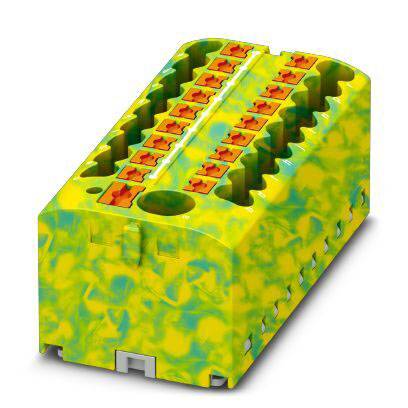

A yellow terminal block with green markings and red clips, used for electrical wiring.

Image similar

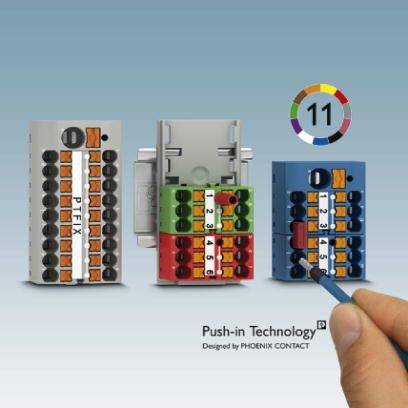

Three push-in terminal blocks with different colours and connection numbering. A finger is pointing to an orange terminal.

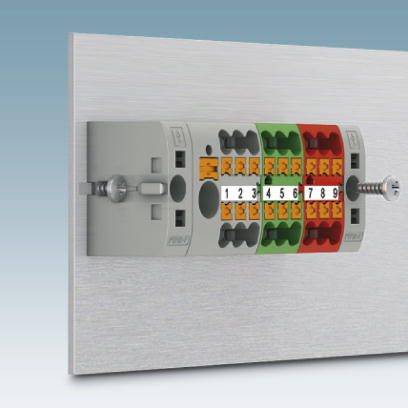

A colour-coded connector with numbered terminals on a metal plate, showing orange, green, and red sections.

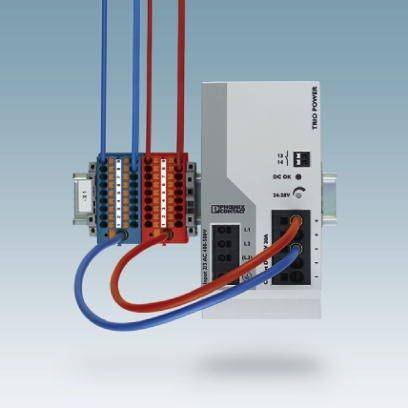

Industrial equipment connected with cables, showing an electrical installation with colour-coded wires and connections.

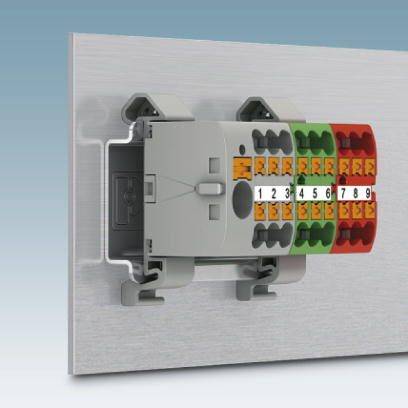

Electrical plug connector with colour-coded terminals, numbered from 1 to 9, for secure wiring in a control cabinet.

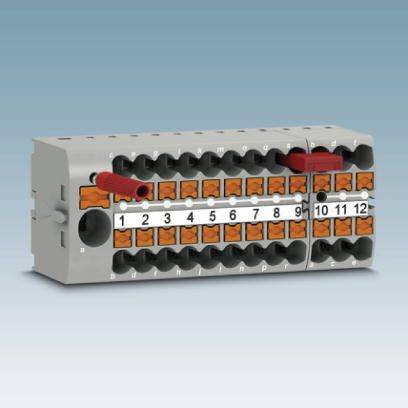

Multi-pole distribution terminal with numbered terminals and red wire bridges, in grey, on a blue background.

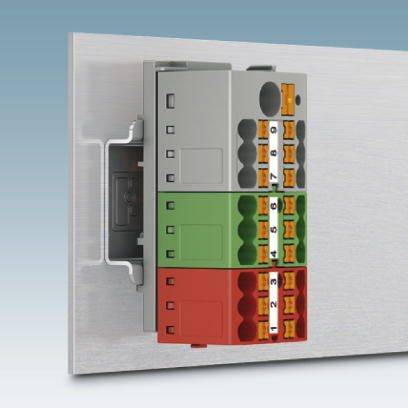

Pluggable electrical terminal block in grey, green and red, with numbered connections, mounted on a metallic mounting plate.

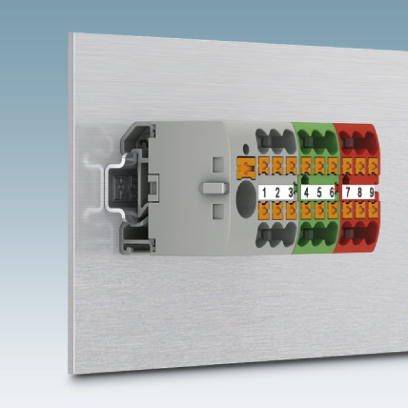

A grey electrical connector with labelled terminals numbered from 1 to 9 on a metallic background, used for electrical connections.

A diagram shows a binary multiplication grid representing the additive and multiplicative operations in a computing system.

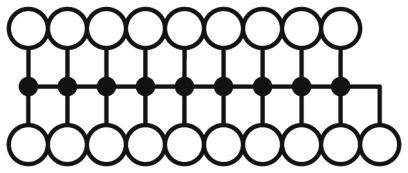

Diagram of an interconnected node system. Lines connect multiple circles in a rectangular arrangement.

1/10

Image similar

Factory colour

Green

Yellow

AWG max.

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W) 28.6 mm x 56.5 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Flammability class according to UL 94: V0
Width 56.5 mm
Number of floors: 1
Number of connections: 19
Potential: 1
Insulating material: PA
Dimensioning surge voltage: 6 kV
Pollution level 3
Over voltage category III
Insulating material group: I
Maximum power loss at rated condition: 1.31 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
Maximum load current: 32 A (at 4 mm² conductor cross-section)
Open side wall: No.
Connection: Feed floor
Total current maximum: 57 A (at 10 mm² conductor cross-section)

Factory colour: Green
Yellow

AWG max.: 12

Stripping length: 8 mm

Stripping length (max.): 10 mm

Dim: (L x W) 28.6 mm x 56.5 mm

Connection: Push-in connector

Manufacturer part #: 1091670

Content: 8 pc(s)

Nominal voltage: 450 V

Nominal current: 24 A

Nominal current - rounded value: 24 A

Width: 56.5 mm

Length: 28.6 mm

Type: PTFIX 6/18X2,5 GNYE

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.14 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2140986 Phoenix Contact 1091670 Green, Yellow 8 pc(s)

User & Safety Instructions

User & Safety Instructions 2140986 Phoenix Contact 1091670 Green, Yellow 8 pc(s)

Description

Distribution block, basic terminal with infeed, the blocks can be bridged to one another via the conductor shaft. Suitable jumpers see accessories, nominal voltage: 450 V, nominal current: 24 A, connection type: Push-in connection, push-in connection, number of connections: 19, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 56.5 mm, height: 21.7 mm, color: Green/yellow, mounting type: Flying, direct mounting with flange, glue
