Buy Phoenix Contact 1091671 Green, Yellow 8 pc(s)

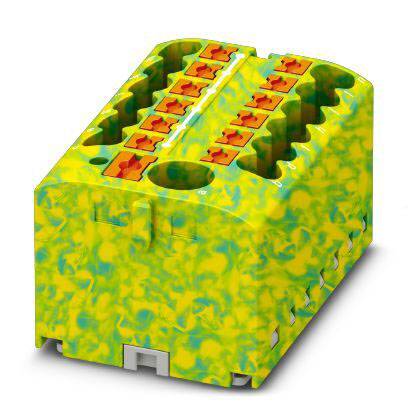

An electrical connection module with a cover featuring a colourful, structured surface, predominantly in yellow and green tones.

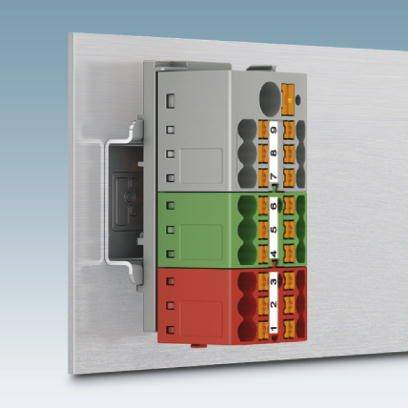

A wall socket with colour-coded connection terminals: grey, green, and red. Each section has numbered cable connections.

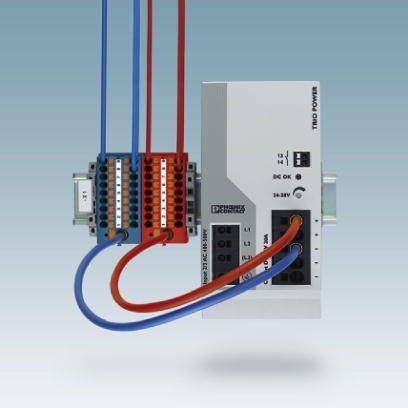

An electronic device with cables inserted into various coloured sockets; possibly a type of power supply unit.

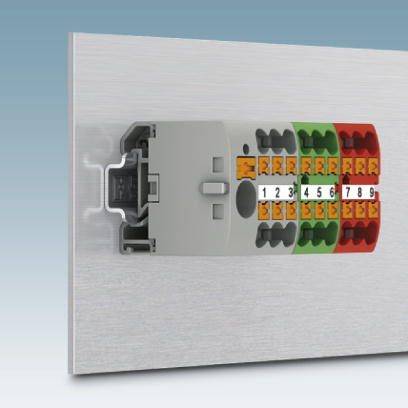

Terminal connections on a grey panel, numbered from 1 to 9 in three colours: White, Orange, and Red.

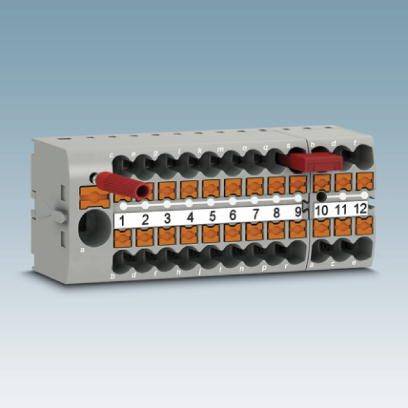

A grey-orange terminal block with numbered terminals from 1 to 12. Two red cables are connected to terminals 9 and 10.

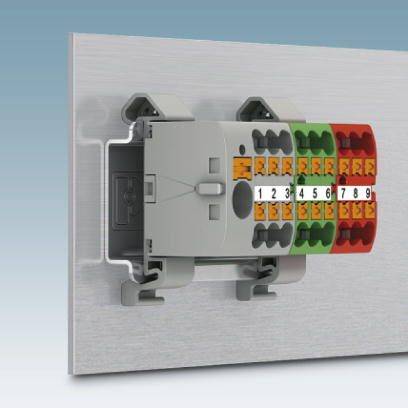

A terminal strip with numbered terminals in red, green, and orange mounted on a metal plate for connecting electrical cables.

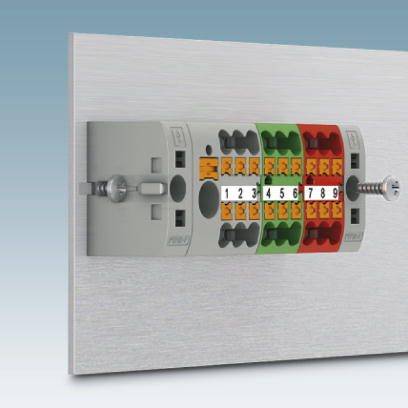

A connector with coloured, numbered terminals on a metal plate. The terminal ensures secure wiring.

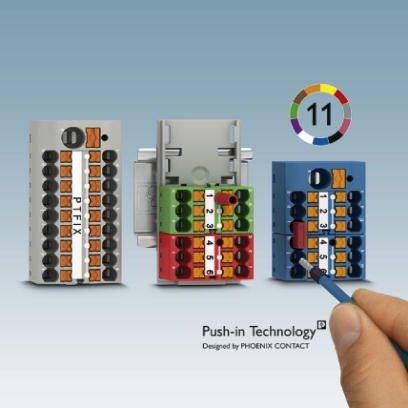

'Three different connection terminals with push-in technology on a blue background. Each terminal has different colours and numbers.'

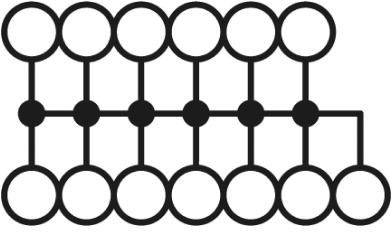

A simple line diagram with six circles in two rows connected by horizontal and vertical lines.

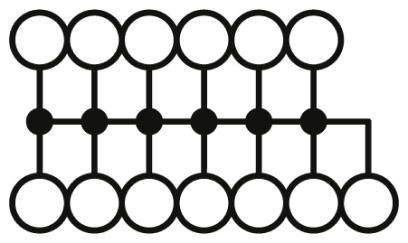

Diagram with twelve circular nodes, connected by lines in two rows, symbolising a network or circuit diagram.

1/10

Factory colour

Green

Yellow

AWG max.

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W) 28.6 mm x 41 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Flammability class according to UL 94: V0
Width 41 mm
Number of floors: 1
Number of connections: 13
Potential: 1
Insulating material: PA
Dimensioning surge voltage: 6 kV
Pollution level 3
Over voltage category III
Insulating material group: I
Maximum power loss at rated condition: 1.31 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
Maximum load current: 32 A (at 4 mm² conductor cross-section)
Open side wall: No.
Connection: Feed floor
Total current maximum: 57 A (at 10 mm² conductor cross-section)

Factory colour: Green
Yellow

AWG max.: 12

Stripping length: 8 mm

Stripping length (max.): 10 mm

Dim: (L x W) 28.6 mm x 41 mm

Connection: Push-in connector

Manufacturer part #: 1091671

Content: 8 pc(s)

Nominal voltage: 450 V

Nominal current: 24 A

Nominal current - rounded value: 24 A

Width: 41 mm

Length: 28.6 mm

Type: PTFIX 6/12X2,5 GNYE

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.14 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2141001 Phoenix Contact 1091671 Green, Yellow 8 pc(s)

User & Safety Instructions

User & Safety Instructions 2141001 Phoenix Contact 1091671 Green, Yellow 8 pc(s)

Description

Distribution block, basic terminal with infeed, the blocks can be bridged to one another via the conductor shaft. Suitable jumpers see accessories, nominal voltage: 450 V, nominal current: 24 A, connection type: Push-in connection, push-in connection, number of connections: 13, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 41 mm, height: 21.7 mm, color: Green/yellow, mounting type: Flying, direct mounting with flange, glue
