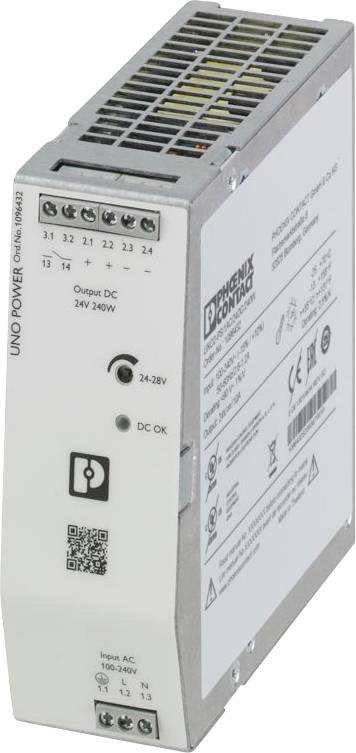

Phoenix Contact 1096432 Power Supply Power Supply Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power Supply
Factory colour
Multicolour
Dim
(W x H x D) 45 x 130 x 129 mm
Content
1 pc(s)
Width
45 mm
Datasheet (PDF)
Technical specifications
- Design of electrical connection: Screw connection
- Output voltage can be set: Yes
- Output voltage controlled: Yes
- Rated supply voltage AC 50 Hz: 85-264 V
- Rated supply voltage AC 60 Hz: 85-264 V
- Direct mounting possible: No.
- Suitable for row mounting: No.
- Suitable for security functions: Yes
- Short-circuit-proof: Yes
- Output: 240 W
- Max. Output current 1 10 A
- Rated output voltage 1: 24 V
- Rated output current 1: 10 A.
- Performance level according to EN ISO 13849-1: Without
- SIL according to IEC 61508: Without
- Voltage type of supply voltage: AC
- Stabilised: Yes
- Mounting rail mounting possible: Yes
- Product type
Power Supply
- Factory colour
Multicolour
- Dim
(W x H x D) 45 x 130 x 129 mm
- Content
1 pc(s)
- Width
45 mm
- Height
130 mm
- Depth
129 mm
IP20
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Recess height
130 mm
- Weight
0.9000 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452770 Phoenix Contact 1096432 Power Supply Power Supply Multicolour 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452770 Phoenix Contact 1096432 Power Supply Power Supply Multicolour 1 pc(s)
Description
Primary clocked power supply, UNO Power, screw connection, mounting rail, input: 1-phase, Output: 24 V DC / 10 A, adjustable from 24 V DC ... 28 V DC
