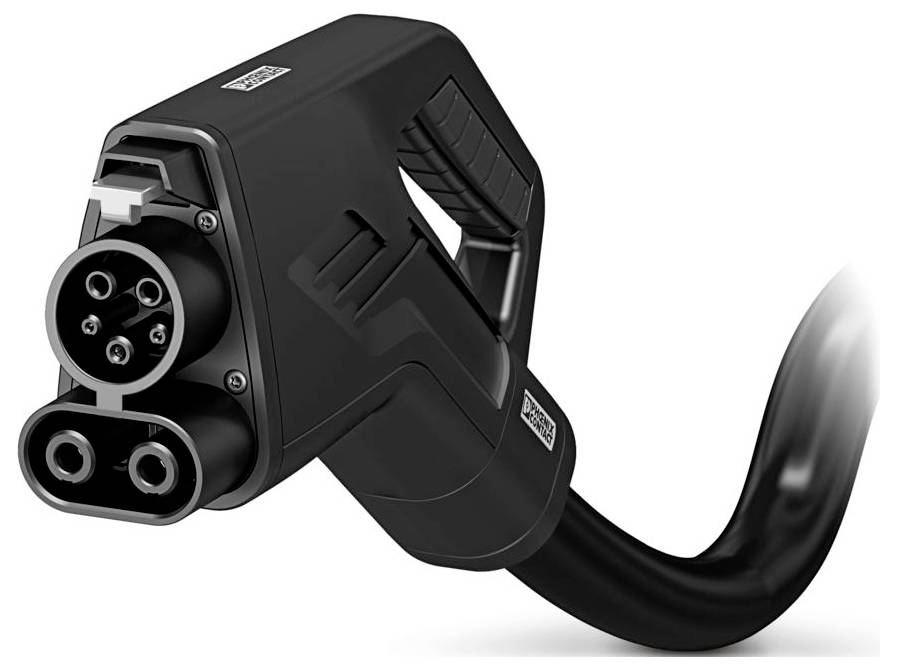

Phoenix Contact 1101122 eMobility charging cable 6 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of communication managers: 2
- Vehicle side version: Type 1 CCS
- Infrastructure side version: Free cable end
- Cable type: Straight
- Contact material: Other
- Charging mode: Mode 4
- With Cable Control Box (ICCB): No.
- With temperature sensor: Yes
- Nominal current: 200 A
- Surface treatment contacts: Other
- Current type DC
- Product type
eMobility charging cable
- Type A
Open cable ends
- Type B
Type 1
- Charging mode
Mode 4
- Cable length
6 m
- Nominal voltage
1000 V
- Nominal current
200 A
- Nominal current - rounded value
200 A
- Charging capacity
200 kW
- Charging current
200 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563553 Phoenix Contact 1101122 eMobility charging cable 6 m
User & Safety Instructions
User & Safety Instructions 3563553 Phoenix Contact 1101122 eMobility charging cable 6 m
Description
CHARX connect standard, CCS type 1, DC charge lead, up to 500 A in boost mode, 200 A continuous, 1000 V DC, with vehicle charging plug and open cable end, 6 m cable, black, straight, with charging plug holder, with analog temperature sensors, Phoenix Contact logo, SAE J1772, IEC 62196-3, for charging with DC current (DC) from electric vehicles (EV)
