Buy Phoenix Contact 1101176 SOL-SC-1ST-0-DC-2MPPT-1000SE Generator junction box

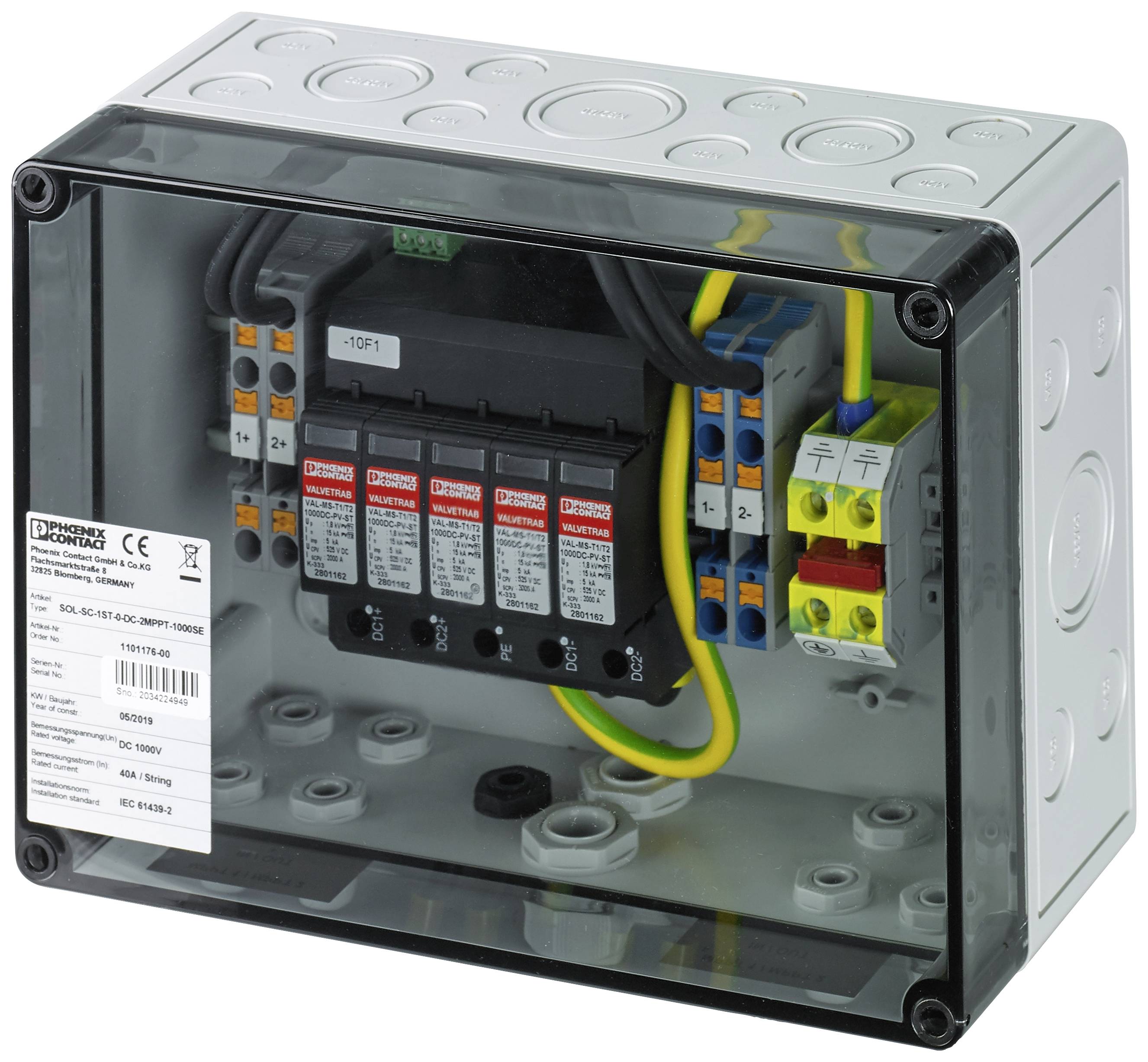

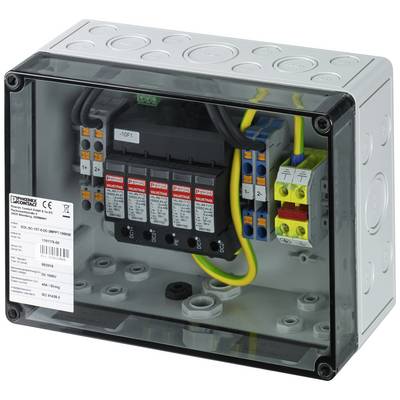

An electrical distribution board with multiple fuses and cable connections. A label with technical details is located on the left side.

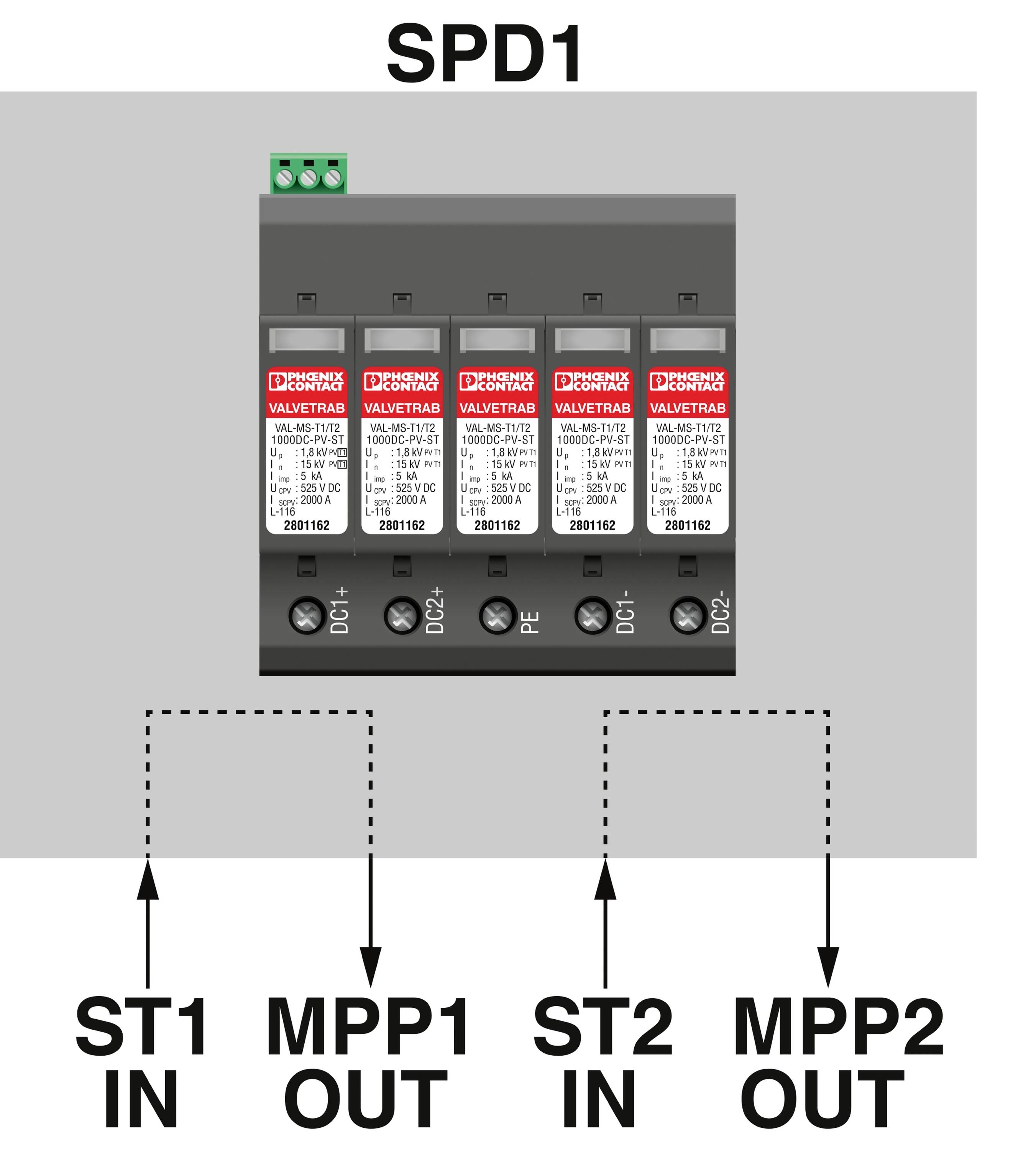

Electrical device with protective switches, designated 'SPD1'. Arrows point to inputs ST1 IN, ST2 IN and outputs MPP1 OUT, MPP2 OUT.

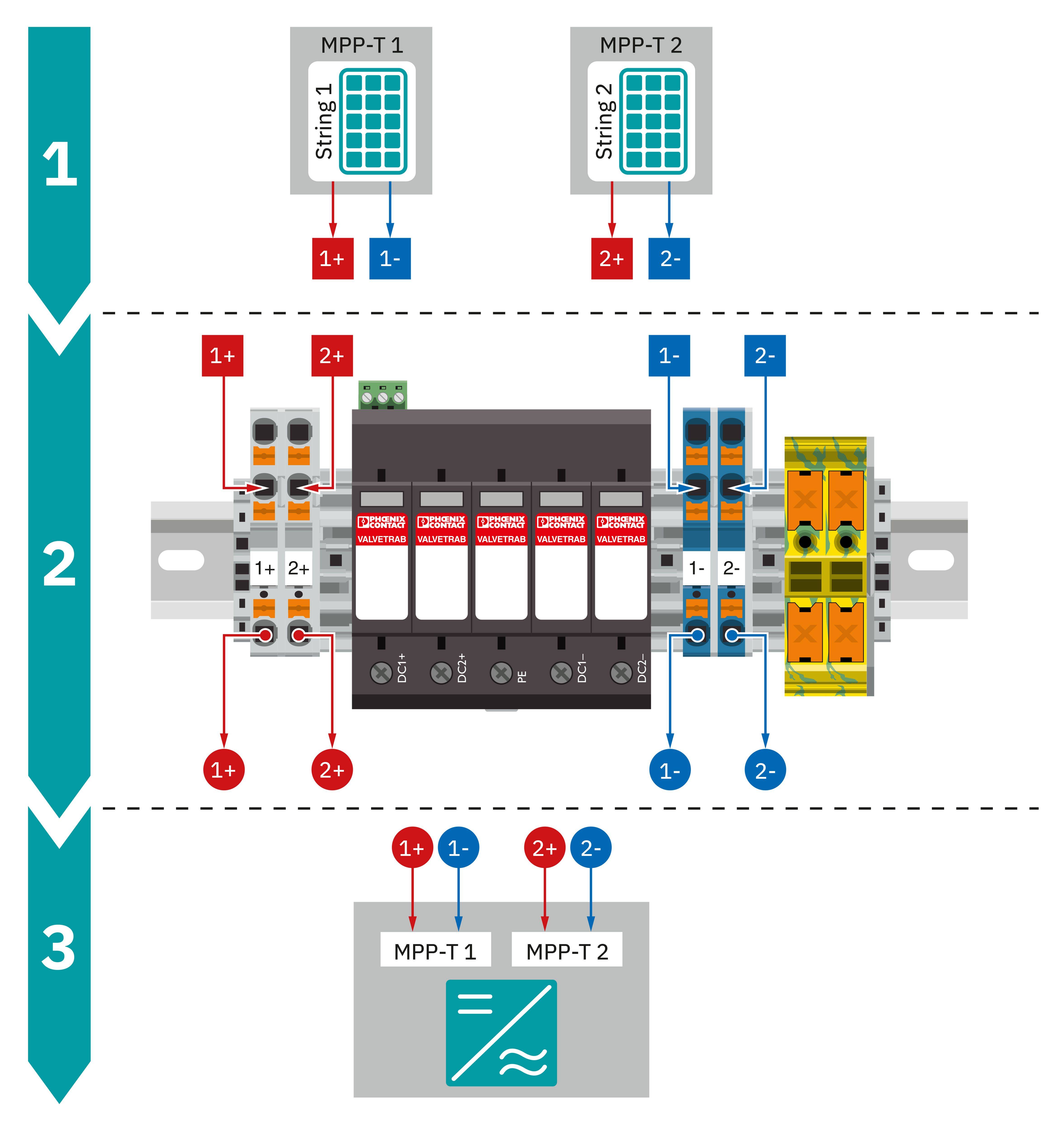

'Schematic representation of an electrical wiring layout with three numbered sections; shows connections between solar modules, protective devices, and an inverter.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Generator connection box

Quick installation and start-upStandard-compliant switching device combination thanks to the application of DIN EN 61439Application-oriented consultingLarge portfolio of in-stock generator junction boxes

Technical specifications

Protection system: IP65Protection class: IIAmbient temperature (operation): -20 °C - +55 °C.Cover/door material: Polycarbonate (transparent)Material casing: PolycarbonateNumber of string inputs: 1 (per MPP tracker)Current per string: 40 A.Number of outputs: 1 (per MPP tracker)Number of MPP trackers supported: 2Surge protection device: T1 / T2Type of cable entry: Cable glandCable cross-section String input: 2.5 mm² - 6 mm²Cable cross-section output: 2.5 mm² - 6 mm²

Product type: Generator junction box

Dim: (W x H x D) 254 x 180 x 111 mm

Weight: 2403 g

Factory colour: Multicolour

Content: 1 pc(s)

Width: 254 mm

Height: 180 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2530739 Phoenix Contact 1101176 SOL-SC-1ST-0-DC-2MPPT-1000SE Generator junction box

User & Safety Instructions

User & Safety Instructions 2530739 Phoenix Contact 1101176 SOL-SC-1ST-0-DC-2MPPT-1000SE Generator junction box

Description

In order to optimally protect photovoltaic systems from lightning strikes and overvoltage, the use of generator connection boxes is necessary. The ready-to-install and immediately connected generator connection boxes are reliable system solutions that protect the inverter directly from the DC or AC voltage inputs. Thereby, overvoltage coupling is directly deflected to earthing potential.

This text is machine translated.
