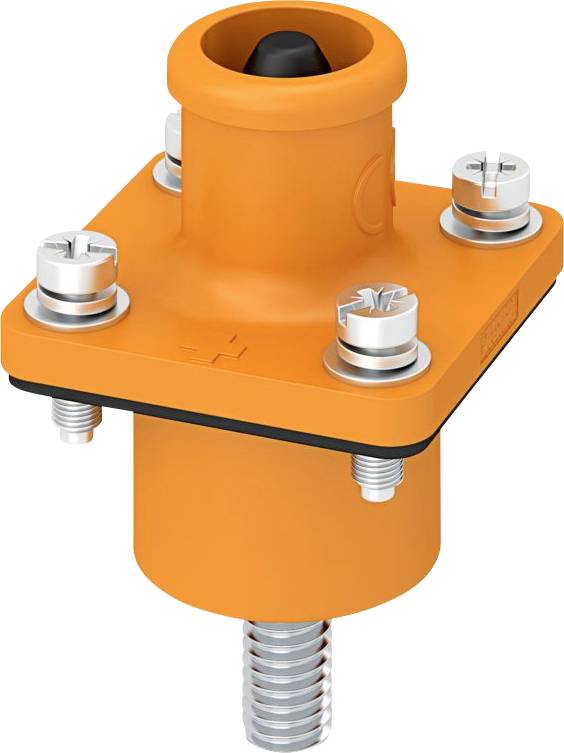

Phoenix Contact 1106303 Connector Plug Total number of pins: 1 15 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug
Total no. of pins
1
Connection
Screw terminal
Content
15 pc(s)
Datasheet (PDF)
Technical specifications
- Core cross-section min.: 16 mm²
- Wire cross-section max.: 25 mm²
- Rated voltage: 1500 V
- Connection type: screw terminals.
- Contact type: Pin
- Article family: BPC
- Type
ES-FT-BPC-S 16-25 OG
- Product type
Connector
- Connector type
Plug
- Total no. of pins
1
- Connection
Screw terminal
- Factory colour
Orange
- Content
15 pc(s)
- Nominal current
120 A
- Nominal current - rounded value
120 A
- Manufacturer part #
1106303
- Number of pins
1
- max. cross section
25 mm²
- Min. cross section
16 mm²
- Cross-section range
16 - 25 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452275 Phoenix Contact 1106303 Connector Plug Total number of pins: 1 15 pc(s)
User & Safety Instructions
User & Safety Instructions 3452275 Phoenix Contact 1106303 Connector Plug Total number of pins: 1 15 pc(s)
Description
Plug connector, product family: BPC, color: Orange, number of poles: 1, wire cross section min.: 16 mm², wire cross section max.: 25 mm², rated voltage: 1500, rated current: 120 A, connection type: Screw connection, contact type: Pin
