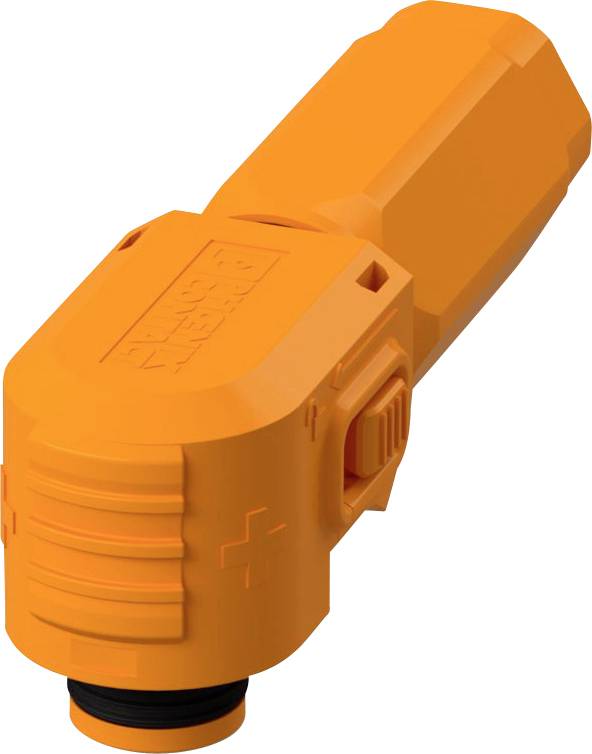

Phoenix Contact 1106306 Connector Socket Total number of pins: 1 20 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Socket
Total no. of pins
1
Connection
Crimp
Content
20 pc(s)
Datasheet (PDF)
Technical specifications
- Core cross-section min.: 16 mm²
- Wire cross-section max.: 25 mm²
- Rated voltage: 1500 V
- Connection type: Crimp
- Contact type: Socket
- Article family: BPC
- Type
ES-BPC-C 16-25 OG
- Product type
Connector
- Connector type
Socket
- Total no. of pins
1
- Connection
Crimp
- Factory colour
Orange
- Content
20 pc(s)
- Nominal current
120 A
- Nominal current - rounded value
120 A
- Cable Ø (max.)
10.7 mm
- Cable Ø up to
7.2 mm
- Manufacturer part #
1106306
- Cable Ø range
7.2 - 10.7 mm
- Number of pins
1
- max. cross section
25 mm²
- Min. cross section
16 mm²
- Cross-section range
16 - 25 mm²
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452277 Phoenix Contact 1106306 Connector Socket Total number of pins: 1 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3452277 Phoenix Contact 1106306 Connector Socket Total number of pins: 1 20 pc(s) Piece
Description
Plug connector, product family: BPC, color: Orange, number of poles: 1, wire cross-section min.: 16 mm², wire cross-section max.: 25 mm², rated voltage: 1500, rated current: 120 A, connection type: Crimp, contact type: Socket, Cable diameter min.: 7.2 mm, cable diameter max.: 10.7 mm
