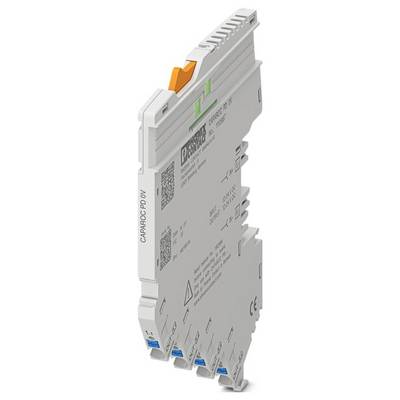

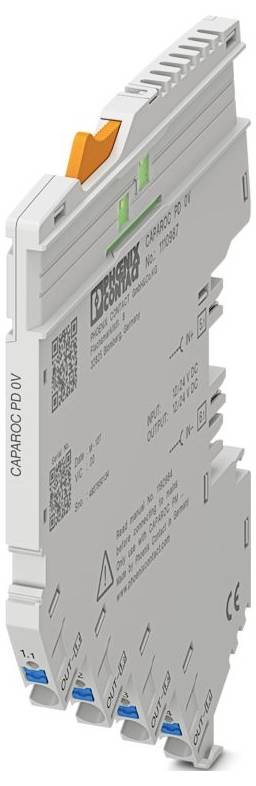

Buy Phoenix Contact 1110987 CAPAROC PD 0V Potential distributor 1 pc(s)

Din rail-mounted surge protection device with orange release button and connectors, designed to protect electrical systems from voltage spikes.

Image similar

Product type

Potential distributor

Type

Plug-in module

Connection

Push-in spring-loaded terminal

IP rating

IP20

Length

109.9 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: CAPAROC
Designed: Clip-on module
Push-in connection
Conductor cross-section flexible: 0.2 mm² ... 4 mm².
Conductor cross-section rigid: 0.2 mm² ... 4 mm².
Wire cross-section AWG: 24 ... 12
Width 6.2 mm
Height: 132.4 mm
Depth: 109.9 mm (including mounting rail 7.5 mm)
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -30 °C ... 65 °C (the temperature range of the infeed module must be taken into account)
Ambient temperature (storage/transport): -40 °C ... 70 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations EN 60068-2-27
Note: Environmental influences - shocks
Mounting type: Pluggable on bus bar CAPAROC CR…
Insulation properties: Insulation properties
Pollution level: 2
Shock (Operation): 30g (11 ms duration, half-sine shock pulse, according to IEC 60068-2-27);25g (6 ms duration, half-sine shock pulse according to IEC 60068-2-27, continuous shock)
Vibration (operation): 5g (10 Hz ... 150 Hz / 10 cycles / axis / X, Y, Z)
Operating voltage: 0 V DC ... 30 V DC
Stripped length: 10 mm
General: General
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 4 mm².
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 4 mm².
Identification: ISA S71.04.2013 G3 Harsh Group A
MATERIAL PA 6;PA 6;PA 6
Power loss: < 0.4 W (in nominal operation at 24 V and 4 x 10 A)
RATED VOLTAGE 12 V DC;24 V DC
Protection class III
Efficiency level > 99 %
MTBF (IEC 61709, SN 29500): 269532625 h (at 25 °C with 21 % load);269532334.5 h (at 40 °C with 34.25 % load);269530881.5 h (at 60 °C with 100 % load)
Pollutant test: Pollutant gas test
UL-approval: UL-approval
Dimensioning surge voltage: 0.5 kV
Number of slots: 1
Load circuit: Load circuit
Voltage drop 9.7 mV (at 10 A)
Moisture testing 96 h, 95 % RH, 40 °C.
Rated current IN: 4x 10 A DC (per output);2x 20 A DC (per output);40 A DC (total)
