Buy Phoenix Contact 1115661 CAPAROC PM S-R Feeder module 1 pc(s)

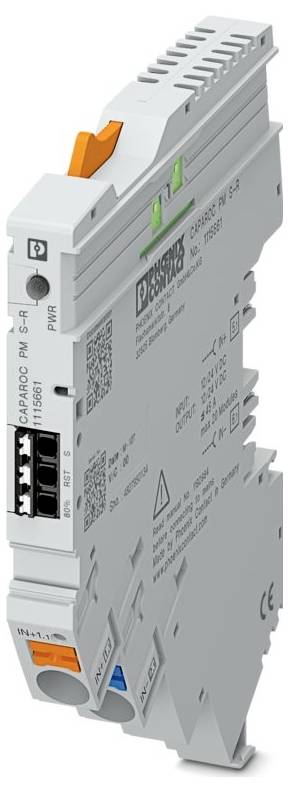

A white Phoenix Contact power supply unit with connector ports and an orange clip, standing upright. Contains model and branding information.

Image similar

Product type

Feeder module

Type

Plug-in module

Connection

Push-in spring-loaded terminal

IP rating

IP20

Length

111.3 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: CAPAROC
Designed: Clip-on module
Push-in connection
Conductor cross-section rigid: 0.5 mm² ... 16 mm²
Wire cross-section AWG: 20 ... 8
Width 12.4 mm
Height: 132.4 mm
Depth: 111.3 mm (including mounting rail 7.5 mm)
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -30 °C ... 65 °C
Ambient temperature (storage/transport): -40 °C ... 70 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations EN 60068-2-27
Note: Environmental influences - shocks
Mounting type: Pluggable on bus bar CAPAROC CR…
Insulation properties: Insulation properties
Pollution level: 2
Shock (Operation): 30g (11 ms duration, half-sine shock pulse, according to IEC 60068-2-27);25g (6 ms duration, half-sine shock pulse according to IEC 60068-2-27, continuous shock)
Vibration (operation): 5g (10 Hz ... 150 Hz / 10 cycles / axis / X, Y, Z)
Operating voltage: 10 V DC ... 30 V DC
Stripped length: 18 mm
General: General
Voltage resistance 35 V DC (load circuit)
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.5 mm² ... 16 mm²
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.5 mm² ... 16 mm²
Identification: ISA S71.04.2013 G3 Harsh Group A
MATERIAL PA 6;PA 6;PA 6;PC
Power loss: Type 0.22 W (at idle speed at 24 V);< 1.5 W (at nominal power at 24 V and 45 A)
RATED VOLTAGE 12 V DC;24 V DC
Protection class III
Output voltage: Max. 30 V DC (input voltage ±5 % at I > 80 % at min. One channel)
Input voltage range: 7 V DC ... 30 V DC (reset with falling edge)
Current consumption: Type 0.5 mA at 24 V
Efficiency level > 99 %
MTBF (IEC 61709, SN 29500): 18886912.65 h (at 25 °C with 21 % load);5907048.64 h (at 40 °C with 34.25 % load);933563.97 h (at 40 °C with 100 % load)
Pollutant test: Pollutant gas test
UL-approval: UL-approval
Output current max. 20 mA
Dimensioning surge voltage: 0.5 kV
Number of slots: 2
Load circuit: Load circuit
Trigger type E (electronic)
Quiescent current I0: Type 9 mA (when idling at 24 V)
Temperature derating: 45 A (total current at 40 °C);30 A (total current at 65 °C)
Voltage drop 0.03 V (at 45 A)
Low-voltage cut-off: ≥ 9.2 V DC (active); ≤ 10.2 V DC (inactive)
Reset
Pulse length ≥ 50 ms
Status output: Status output
Moisture testing 96 h, 95 % RH, 40 °C.
Rated current IN:45 A DC (total current input)
Overvoltage cut-off: ≥ 30.5 V DC (active);≤ 29.5 V DC (inactive)
Main circuit IN+: Main circuit IN+
Main circuit IN-: Main circuit IN-
Maximum system configuration: ≤ 20 (stackable CAPAROC modules)
Power (PWR) green LED: Lit (no channel error);lit (supply voltage in nominal range);flashes (3 x when programming lock is deactivated)
Power (PWR) LED red: Lit (supply voltage outside nominal range)
Power (PWR) LED yellow: Flashes (3 x when activating the programming lock)
Green LED signal: Lights up (on no channel fault);lights up (supply voltage in rated range)
Yellow LED signal: Lights up (at I > 80 % at min. One channel)
Red LED signal: Lit (at least one channel fault);lit (supply voltage outside nominal range)
