Buy Phoenix Contact 1115672 CAPAROC CR 8 Busbar 1 pc(s)

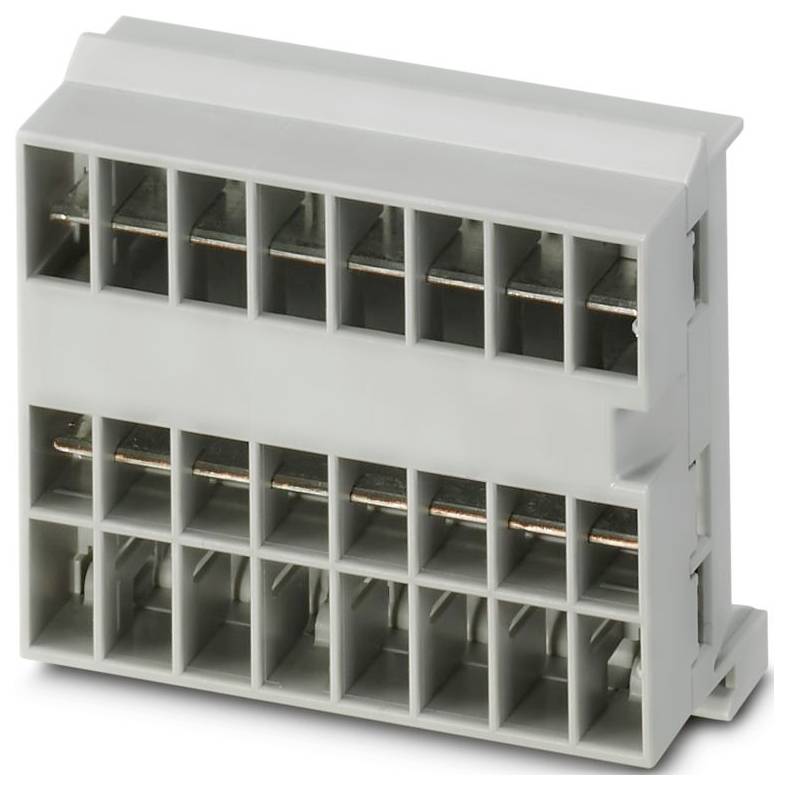

Image similar

Product type

Busbar

Type

Plug-in module

IP rating

IP20

Length

22.5 mm

Width

49.4 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Product family: CAPAROC
Designed: Clip-on module
Width 49.4 mm
Height: 44 mm
Depth: 22.5 mm (including mounting rail 7.5 mm)
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -30 °C ... 65 °C (the temperature range of the infeed module must be taken into account)
Ambient temperature (storage/transport): -40 °C ... 70 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations EN 60068-2-27
Note: Environmental influences - shocks
Mounting type: Rail: 35 mm
Insulation properties: Insulation properties
Pollution level: 2
Shock (Operation): 30g (11 ms duration, half-sine shock pulse, according to IEC 60068-2-27);25g (6 ms duration, half-sine shock pulse according to IEC 60068-2-27, continuous shock);15g (6 ms duration, half-sine shock pulse according to IEC 60068-2-27, continuous shock. If more than six CAPAROC E1 modules are used in the system.)
Vibration (operation): 5g (10 Hz ... 150 Hz / 10 cycles / axis / X, Y, Z)
General: General
Identification: ISA S71.04.2013 G3 Harsh Group A
Material: Copper; PC
Power loss: < 0.5 W (at 45 A in plus path)
Rated voltage 24 V DC
Protection class III
Pollutant test: Pollutant gas test
UL-approval: UL-approval
Number of slots: 8
Moisture testing 96 h, 95 % RH, 40 °C.
Rated current IN:45 A DC (total current input)
