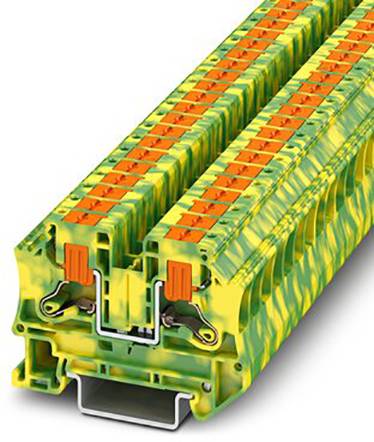

Phoenix Contact 1116736 PG terminal 8.2 mm Push-in connector Green-yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Earthing conductor terminal blocks 1116736 50 piece
Highlights & Details
- PTV 6-PE
Technical specifications
- Product type
PG terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green-yellow
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
1116736
- Content
50 pc(s)
- Type
PTV 6-PE
- Dim
(L x W x H) 61 x 8.2 x 42.2 mm
- Width
8.2 mm
- Height
42.2 mm
- Length
61 mm
Documents & Downloads
Datasheet
Datasheet 2861957 Phoenix Contact 1116736 PG terminal 8.2 mm Push-in connector Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2861957 Phoenix Contact 1116736 PG terminal 8.2 mm Push-in connector Green-yellow 50 pc(s)
Description
Continuity terminal, rated voltage: 1000 V, rated current: 41 A, connection type: Push-in connection, number of connections: 2, number of pins: 1, cross-section: 0.5 mm² - 10 mm², AWG: 20 - 8, width: 8.2 mm, height: 42.2 mm, color: Green/yellow, type of installation: NS 35/7.5, NS 35/15Clear wiring with lateral wire feedThe compact design allows wiring in confined spacesThe Push-IN terminals are distinguished by the system features of the CLIPLINE complete systemIn addition to the testing option in the double functional bay, all the terminals have an additional test interface
