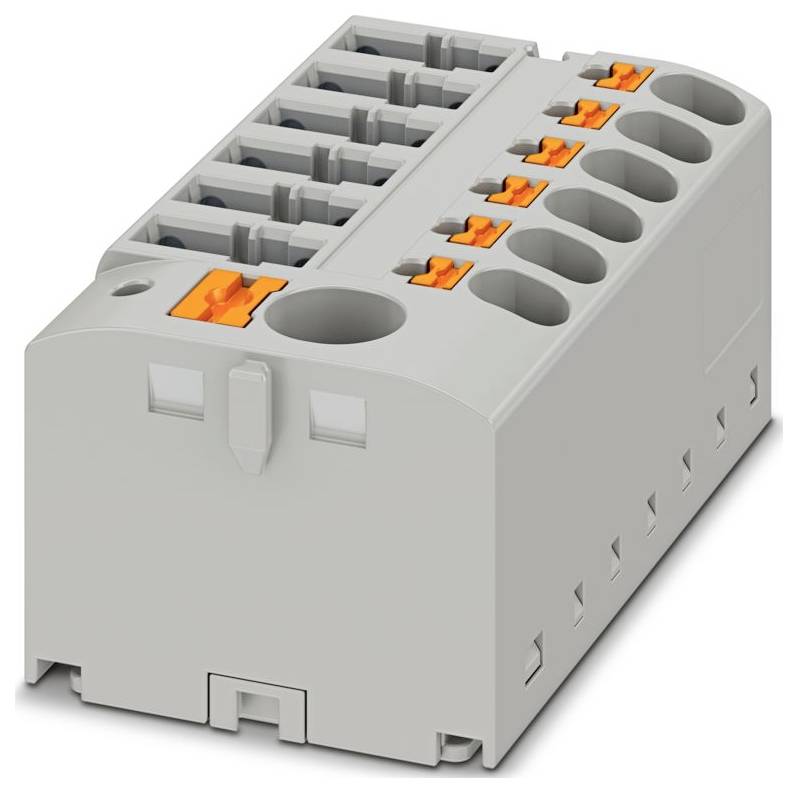

Phoenix Contact 1130751 Distribution block Grey 8 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
20 A
Content
8 pc(s)
Datasheet (PDF)
Highlights & Details
Function distribution block
- PTFIX 6/6X2,5-TG
Technical specifications
- Cover plate required: No.
- Suitable for single wire cross sections of 0.14-4 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.14 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.14-4 mm²
- Number of clamping points per level: 7
- Cross section separation design: Without
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:20 A.
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- With integrated test socket: No.
- Material of the insulating body: Other
- Product type
Distribution block
- Features
built-in jumper
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
1130751
- Content
8 pc(s)
- Type
PTFIX 6/6X2,5-TG
- Dim
(W x H x D) 47.6 x 28.6 x 21.7 mm
- Width
47.6 mm
- Height
28.6 mm
- Flammability rating
V0
- Depth
21.7 mm
- Rated voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564586 Phoenix Contact 1130751 Distribution block Grey 8 pc(s)
User & Safety Instructions
User & Safety Instructions 3564586 Phoenix Contact 1130751 Distribution block Grey 8 pc(s)
Description
Function distribution block, current and voltage are determined by the plug used., basic terminal with feed and multifunctional separation zone in the branches, rated voltage: 400 V , rated current: 20 A, tap, connection type: Push-in connection, Rated cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², collective connection, connection type: push-in connection, rated cross-section: 6 mm², Cross-section: 0.5 mm² - 10 mm², mounting: snap-on mounting rail adapter, direct mounting with flange, fly, color: gray
