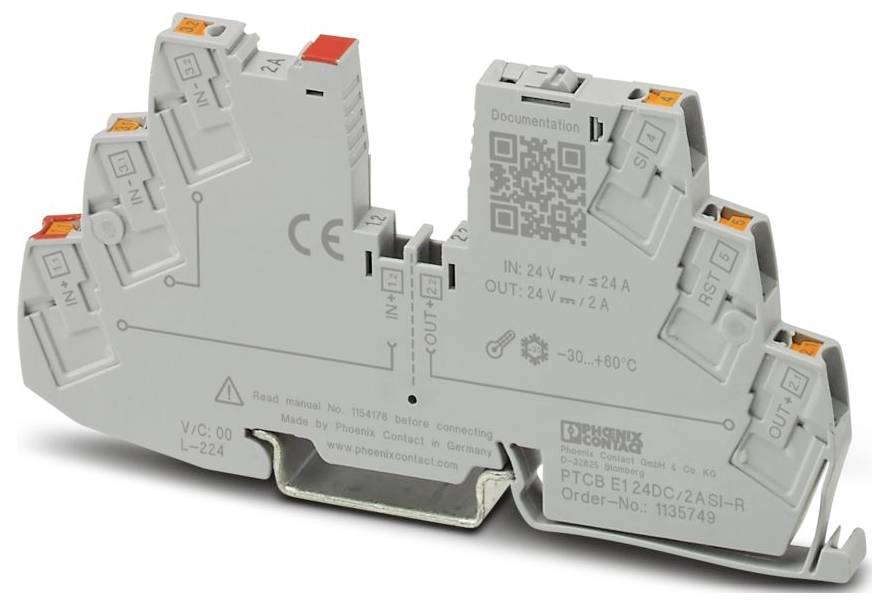

Phoenix Contact 1135749 PTCB E1 24DC/2A SI-R RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
RCCB
Width
6.2 mm
Height
105.8 mm
Content
1 pc(s)
Type
PTCB E1 24DC/2A SI-R
Datasheet (PDF)
Technical specifications
- Switch-off time 0.01 ms
- Active current limiting x IN: 0
- Flammability class of insulation material according to UL94: Other
- Fail-safe element 5 A.
- Max. Capacity load 0,014 µF
- With remote indication contact: No.
- Mounting type: Other
- Nominal current: 24 A
- Number of poles: 1
- Fuse type: Electronic
- Ambient temperature during operation: -30-60 °C.
- Product type
RCCB
- Width
6.2 mm
- Height
105.8 mm
- Content
1 pc(s)
- Type
PTCB E1 24DC/2A SI-R
- Dim
(W x H x D) 6.2 x 105.8 x 55.6 mm
- Depth
55.6 mm
- Operating voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564882 Phoenix Contact 1135749 PTCB E1 24DC/2A SI-R RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3564882 Phoenix Contact 1135749 PTCB E1 24DC/2A SI-R RCCB 1 pc(s)
Description
Electronic device protection switch E (electronic), 1-pin, trip characteristic: Electronic, mounting type: Support rail: 35 mm, rated current: 24 A
