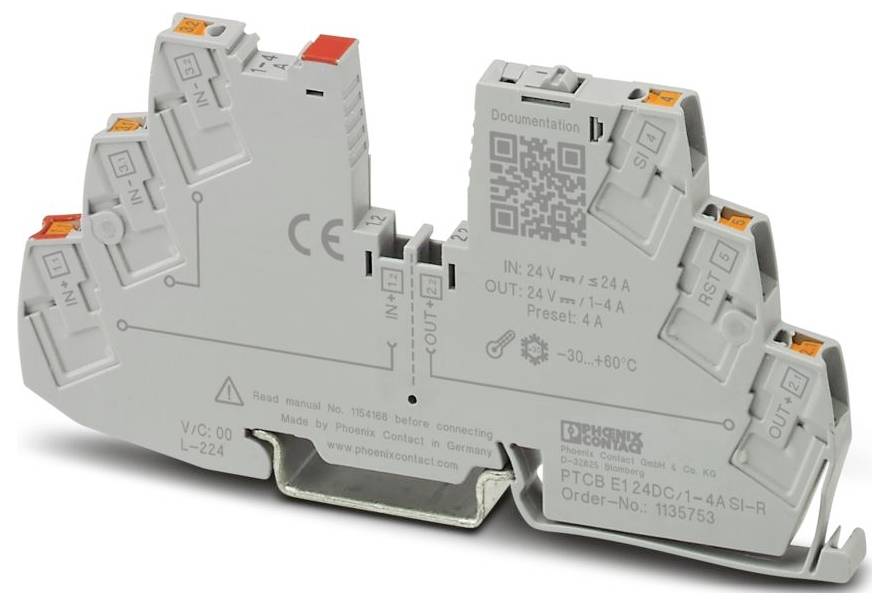

Phoenix Contact 1135753 PTCB E1 24DC/1-4A SI-R RCCB 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Switch-off time 0.01 ms
- Active current limiting x IN: 0
- Flammability class of insulation material according to UL94: Other
- Fail-safe element 5 A.
- Max. Capacity load 0,015 µF
- With remote indication contact: No.
- Mounting type: Other
- Nominal current: 24 A
- Number of poles: 1
- Fuse type: Electronic
- Ambient temperature during operation: -30-60 °C.
- Depth
55.6 mm
- Height
105.8 mm
- Width
6.2 mm
- Operating voltage
27.5 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3564868 Phoenix Contact 1135753 PTCB E1 24DC/1-4A SI-R RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3564868 Phoenix Contact 1135753 PTCB E1 24DC/1-4A SI-R RCCB 1 pc(s)
Description
1-channel, electronic fuse for protecting 24 V-consumers. Simple potential distribution with terminal blocks from the CLIPLINE complete system. With status output, reset input and electronic lock. For installation on DIN mounting rails.
