Phoenix Contact 1139804 Feedthrough Feedthru Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feedthrough
Connector type
Feedthru
Total no. of pins
5
Connection
Push-lock spring terminal
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Suitable for cable cross-sections of 0.14–0.75 mm²
- Number of control contacts: 5
- Type of plug contact, outside: Male (plug)
- Coating housing: Nickel-plated
- Operating temperature 40 to +85 oC
- Flammability class of insulation material according to UL94: V0
- Screw-in thread M20
- Min Number of mating cycles: 100
- With thread: Yes
- With PE connection: No.
- With shield connection: No.
- Surrounding temperature 85-85 °C
- Type
SACC-E-M12MS-5PL-M20
- Product type
Feedthrough
- Connector type
Feedthru
- Total no. of pins
5
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
- No. of contact sizes
5
- Manufacturer part #
1139804
- Number of pins
5
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.75 mm²
- Feature
A-coded
IP67 (when installed)
- Enclosure material
Brass
- Mounting type
Front
- Test current
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452784 Phoenix Contact 1139804 Feedthrough Feedthru Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452784 Phoenix Contact 1139804 Feedthrough Feedthru Total number of pins: 5 1 pc(s)
Description

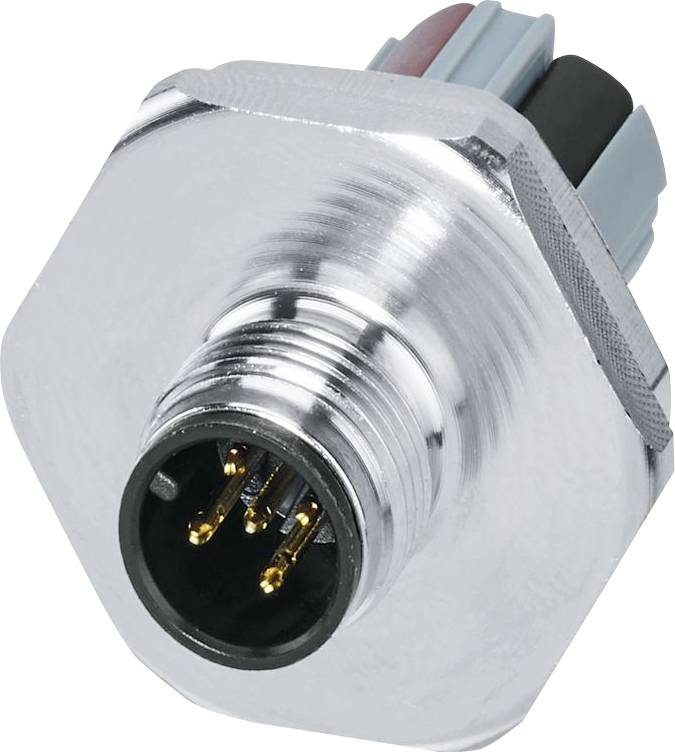

Feedthrough, universal, 5-pin, unshielded, M12 straight plug, Coding: A, front panel fitting, M20 x 1.5, push-lock spring connection, knurled material: brass, Nickel-plated, flat nut enclosed
This text is machine translated.
