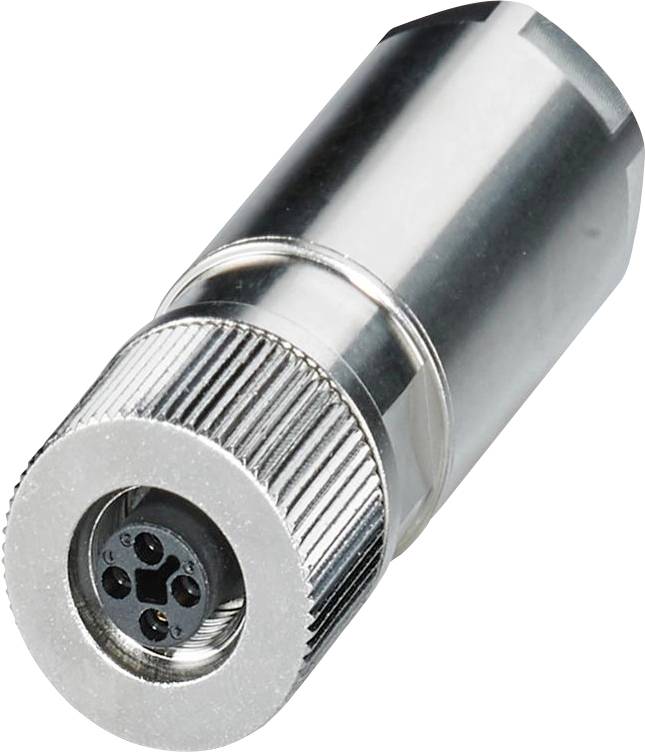

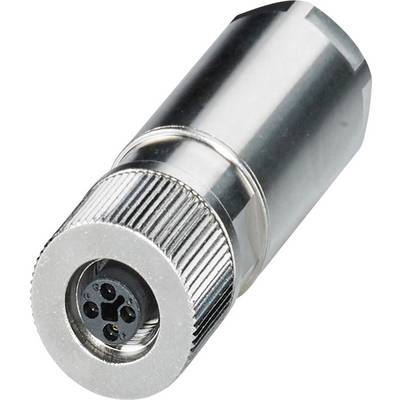

Phoenix Contact 1151366 Connector Total number of pins: 4 Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
4
Connection
Push-lock spring terminal
Content
1 pc(s)
Nominal current - rounded value
12 A
Datasheet (PDF)
Technical specifications
- Wire cross-section with single wire connections: 1.5-2.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 1.5 to 2.5 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 1.5-2.5 mm²
- Multiple wire cross-section that can be connected: 1.5-2.5 mm²
- Number of power contacts: 0
- Number of control contacts: 4
- Construction of the casing: Straight
- Rated voltage: 63 V
- Flammability class of insulation material according to UL94: V0
- Diameter of connector: 23 mm
- Min Number of mating cycles: 100
- With protective conductor: No.
- With status display: No.
- Pollution level 3
- Material of the contact coating: Gold
- Over voltage category III
- Type
SACC-M12FST-4PL-CM
- Product type
Connector
- Total no. of pins
4
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
12 A
- Min. temperature
-40 °C
- Nominal current - rounded value
12 A
- Leading contact (PE)
No
- Contact material
Gold
- Cable Ø (max.)
11 mm
- Cable Ø up to
6 mm
- Case material
Brass
- Manufacturer part #
1151366
- Insulation material
UL 94 V0 standard
- Cable Ø range
6 - 11 mm
- Number of pins
4
- (Ø)
23 mm
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Cross-section range
1.5 - 2.5 mm²
- Feature
T-coded
IP65 (when installed)
- Packaging type
Single
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452789 Phoenix Contact 1151366 Connector Total number of pins: 4 Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452789 Phoenix Contact 1151366 Connector Total number of pins: 4 Single 1 pc(s)
Description
Power plug connector, power, 4-pin, unshielded, M12 straight socket, Coding: T, push-lock spring connection, knurled material: brass, nickel-plated, external cable diameter 6 mm ... 11 mm
