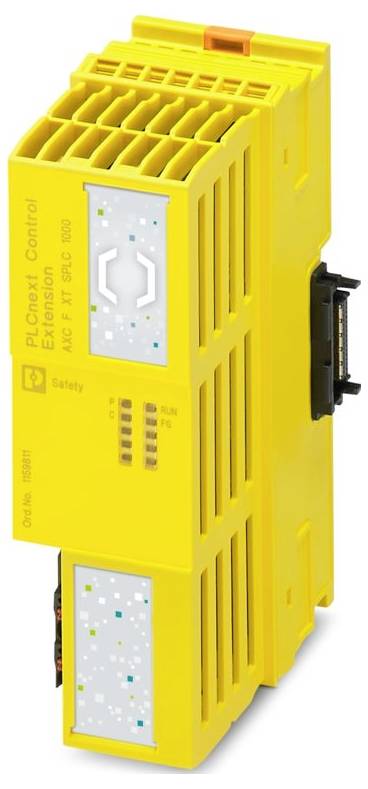

Phoenix Contact 1159811 AXC F XT SPLC 1000 PLC extension module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLCnext Control Extension
- Modular design
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 45 mm
- Height: 126.93 mm
- Depth: 75 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C to 2000 m üNN;-25 °C ... 55 °C to 3000 m üNN;-25 °C ... 50 °C to 4000 m üNN
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Note: Configuration: Security Profile active
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Permissible air humidity (operation): 5 % ... 95 % (according to DIN EN 61131-2)
- Shock (operation): 30g (according to EN 60068-2-27/IEC 60068-2-27)
- Vibration (operation): 5g (according to EN 60068-2-6/IEC 60068-2-6)
- Name of connection: Axioline F-plug
- Stripped length: 8 mm
- General: If the SPLC-1000 is operated with AXC F 2152, the bus base module AXC BS L 2 must be used.
- ATEX
- IECEx: IECEx
- Labelling: Industrial IT Security, IACS Component
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated condition: Typical. 1.92 W;type. 1.92 W .
- PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
- External dimensions: External dimensions
- Width / Height / Depth: 45 mm / 126.93 mm / 75 mm (The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Certificate: ITS2 029429 0027
- Connection technology: Connection technology
- Permissible humidity (storage/transport): 5 % ... 95 % (according to DIN EN 61131-2)
- Note for application: Only for industrial use
- Current consumption: Max. 100 mA;type. 80 mA
- Wire connection: Conductor connection
- Function: Function
- Protection: Reverse polarity protection | reverse polarity protection diode;transient protection | suppressor diode
- Supply: Supply
- Air pressure (storage/transport): 58 kPa ... 106 kPa (up to 4500 m üNN)
- Typical current consumption 80 mA
- Power consumption maximum 100 mA
- Special features: Development process certified according to IEC 62443-4-1; product certified according to IEC 62443-4-2
- Note on dimensions: The depth applies when using a TH 35-7.5 mounting rail (according to EN 60715).
- Supply voltage 24 V DC
- UL Ex, USA / Canada: UL Ex, USA / Canada
- System requirements: System requirements
- Web server: No.
- Axioline F-plug: Axioline F-plug
- Engineering tool: PLCnext Engineer
- Resistance to hazardous gases according to DIN 40046-36/ DIN 40046-37: Use of the device is prohibited under these environmental conditions.
- Safety function: Yes
- Potential: Supply of logic voltage UL: Potential: Supply of logic voltage UL
- Display
- Shock (storage/transport): 30g (according to EN 60068-2-27/IEC 60068-2-27)
- Vibration (storage/transport): 5g (according to EN 60068-2-6/IEC 60068-2-6)
- Diagnostic display: No.
- Redundancy function: No.
- Industrial Cyber Security: Industrial Cyber Security
- Product type
PLC extension module
- Type
AXC F XT SPLC 1000
- Operating voltage
24 V DC
- Height
126.93 mm
- Length
75 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 75 x 45 x 126.93 mm
- Manufacturer part #
1159811
- Type
modular
- Fitting type (details)
Carry rail mounting
- Content
1 pc(s)
- Depth
74.25 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565172 Phoenix Contact 1159811 AXC F XT SPLC 1000 PLC extension module 24 V DC
User & Safety Instructions
User & Safety Instructions 3565172 Phoenix Contact 1159811 AXC F XT SPLC 1000 PLC extension module 24 V DC
Description
PLC expansion module, PLCnext Control Extension, PROFIsafe F-Host, PROFIsafe F-Device, PLCnext Engineer, Certified to IEC 62443-4-2.
