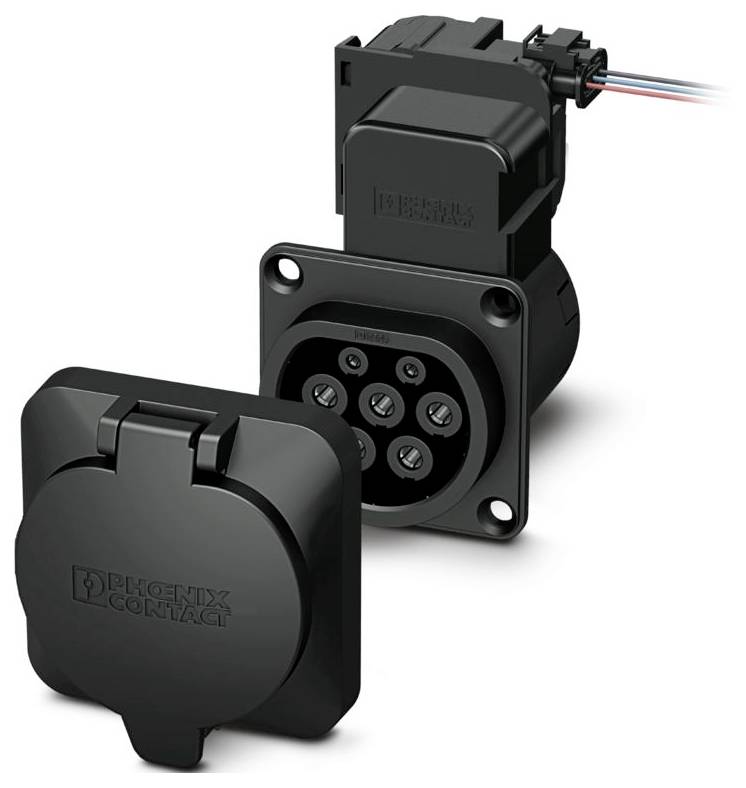

Phoenix Contact 1164420 eMobility charging port Type 2 32 A 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of communication contacts: 2
- LED integrated: No.
- Length of the fixed line: 1 m.
- Nominal current max. 32 A
- With locking actuator: Yes
- With access lock: Yes
- Cross-section of the power contacts: 6-6 mm²
- Standard: Type 2
- Current type AC 3-phase
- Product type
eMobility charging port
- Charger connectors
Type 2
- Charging mode
Mode 3
- Cable length
1 m
- Nominal voltage
480 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP44
- Length
87.95 mm
- Width
75 mm
- Height
91.71 mm
- No. of phases
3-phase
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565569 Phoenix Contact 1164420 eMobility charging port Type 2 32 A 3-phase
User & Safety Instructions
User & Safety Instructions 3565569 Phoenix Contact 1164420 eMobility charging port Type 2 32 A 3-phase
Description
Charx connect modular, type 2, infrastructure charging socket, 32 A, 480 V AC, Basic, Set, without single wires, locking actuator: 12 V, 3-pole, square, rear panel mounting, M5-thread, housing: black, with angular protection cover, For charging with alternating current (AC) of electric vehicles (EV), Phoenix Contact logo, IEC 62196-2
