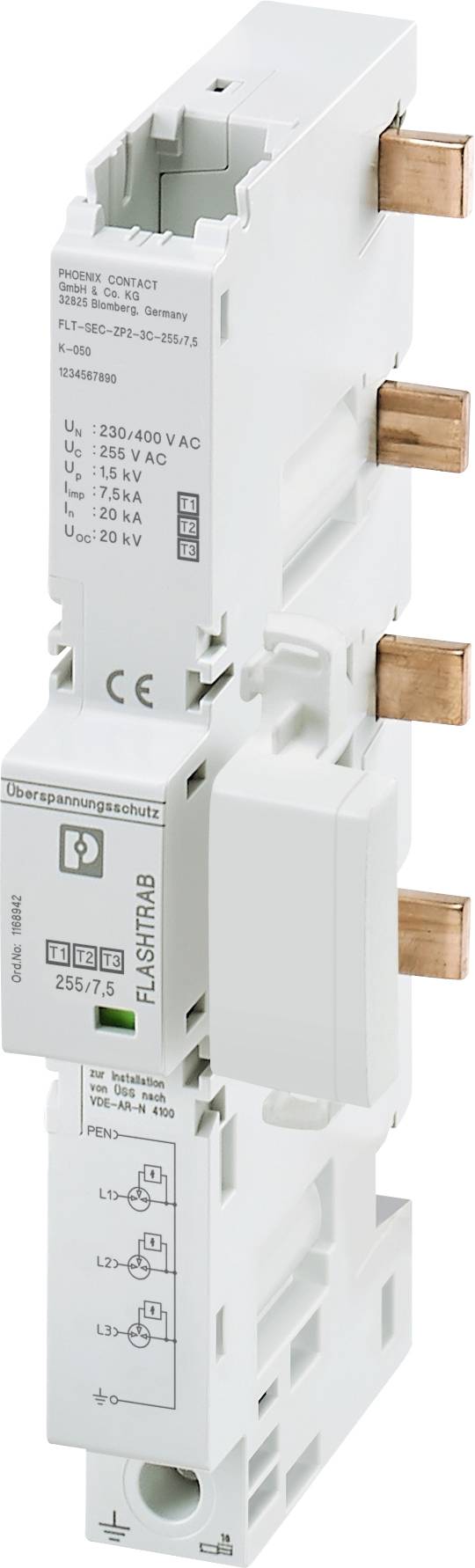

Phoenix Contact 1168942 FLT-SEC-ZP2-3C-255/7.5 Lightning conductor 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 268.91
-31 %
€ 184.87
plus VAT.
14-day return policy included
Technical specifications
- Protection paths: L-PEN
- Division unit: 1.5 TE
- Mounting type: Busbar 40 mm
- Material housing: PA 6.6
- Pollution level: 2
- Flammability class according to UL 94: V-0
- Design: Single-part busbar module
- Number of poles: 3

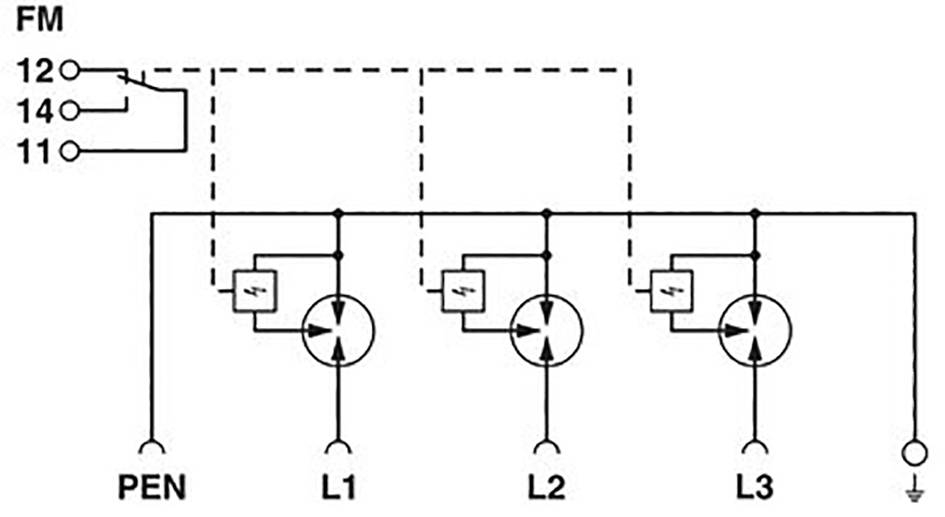

- Overvoltage protection fault message: Optical, remote message via optional module
- Maximum continuous voltage UC: 255 V/AC
- Short circuit resistance ISCCR 25kA
- Maximum pre-fuse for spur line wiring: 160 A (GG)
- Connection type: screw terminals.
- Screw thread: M6
- Product type
Lightning conductor
- Leakage current
20 kA
- Nominal voltage
240 V AC
415 V AC
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
1168942
- Factory colour
Light grey
- Standards
IEC 61643-11
EN 61643-2012 + A11:2018

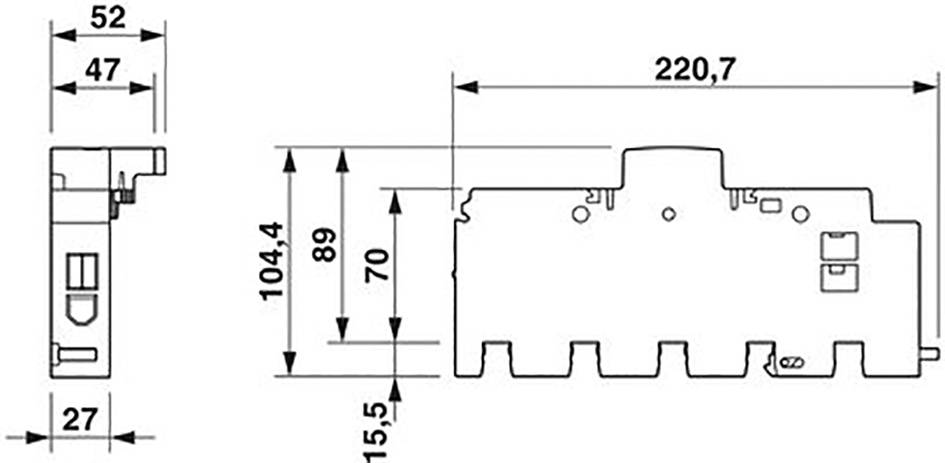

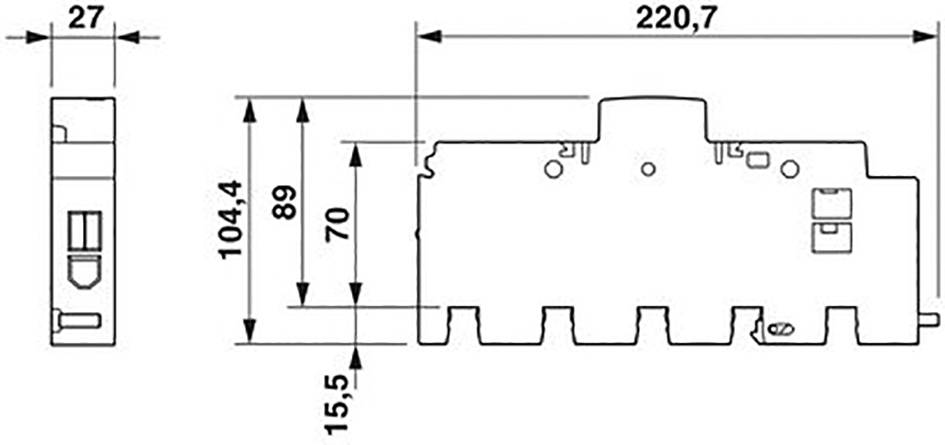

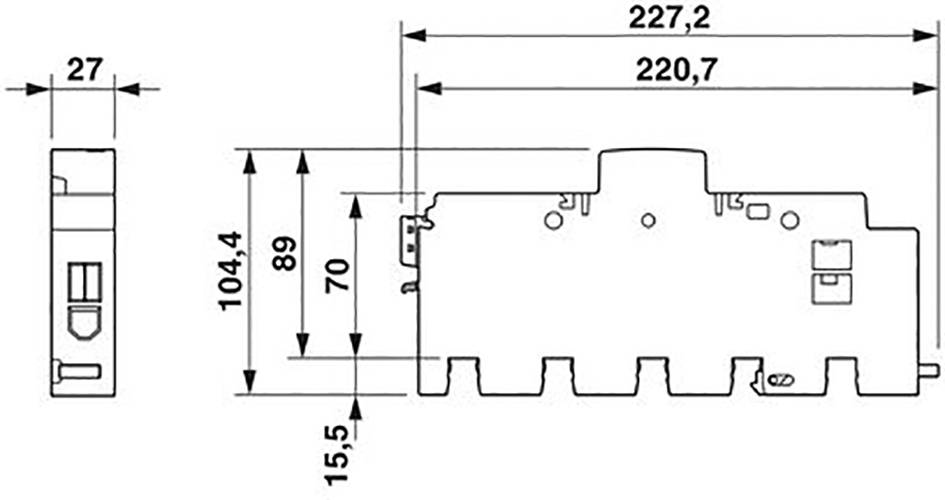

- Dim
(W x H x D) 27 x 222.7 x 104.4 mm
- Width
27 mm
- Height
222.7 mm
- Depth
104.4 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2435738 Phoenix Contact 1168942 FLT-SEC-ZP2-3C-255/7.5 Lightning conductor 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2435738 Phoenix Contact 1168942 FLT-SEC-ZP2-3C-255/7.5 Lightning conductor 20 kA 1 pc(s)
Description
Your advantage:
Universal use – fits in every meter cabinet regardless of manufacturer thanks to a narrow width of only 27 mm
Installation in the precounting area thanks to conformity to the application rule VDE-AR-N 4100 – confirmed by VDE approval
Tool-free and secure mounting thanks to universal locking on 5 mm and 10 mm rail thickness
Integration in building control technology with optional telecommunication module

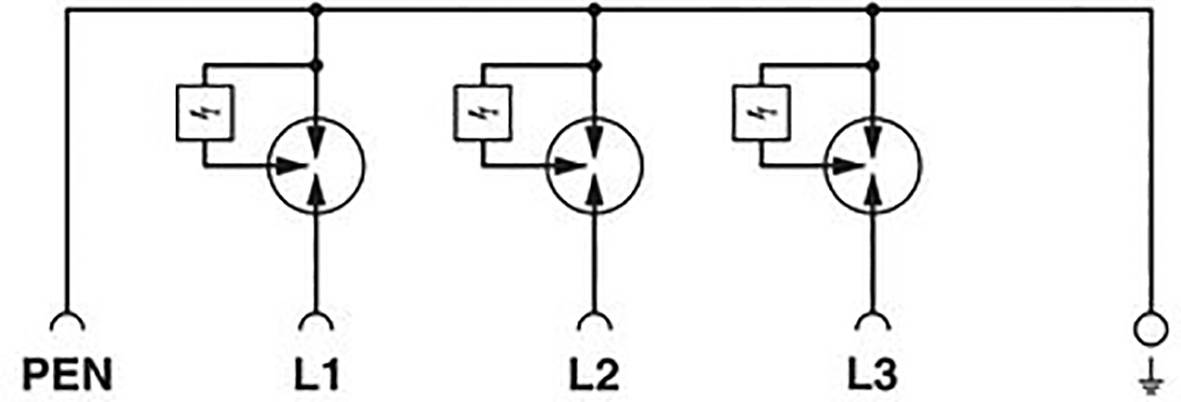

Lightning current arresters, according to type 1 / class I, for 3-phase power supply networks, with combined laid N and PE (L1, L2, L3, PEN). Suitable for equipotential bonding in systems without external lightning protection with and without line feed. For mounting on 40 mm busbar systems.
This text is machine translated.
Universal use – fits in every meter cabinet regardless of manufacturer thanks to a narrow width of only 27 mm
Installation in the precounting area thanks to conformity to the application rule VDE-AR-N 4100 – confirmed by VDE approval
Tool-free and secure mounting thanks to universal locking on 5 mm and 10 mm rail thickness
Integration in building control technology with optional telecommunication module
Lightning current arresters, according to type 1 / class I, for 3-phase power supply networks, with combined laid N and PE (L1, L2, L3, PEN). Suitable for equipotential bonding in systems without external lightning protection with and without line feed. For mounting on 40 mm busbar systems.
