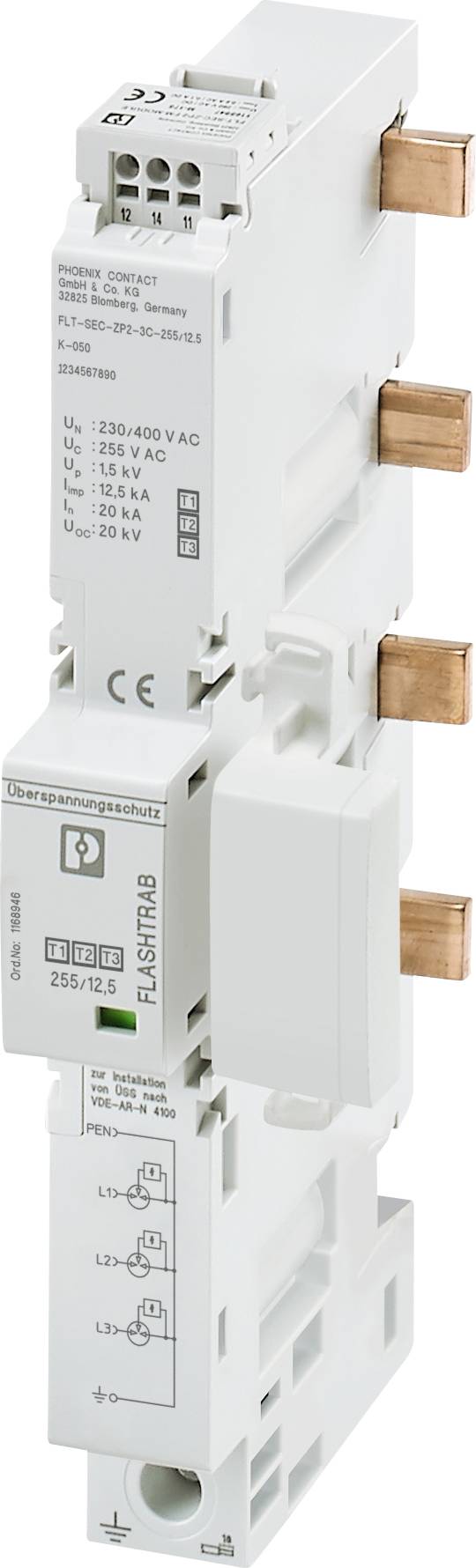

Phoenix Contact 1168946 FLT-SEC-ZP2-3C-255/12.5 Lightning conductor 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€ 344.54
-17 %
€ 284.87
plus VAT.
14-day return policy included
Technical specifications
- Protection paths: L-PEN
- Division unit: 1.5 TE
- Mounting type: Busbar 40 mm
- Material housing: PA 6.6
- Pollution level: 2
- Flammability class according to UL 94: V-0
- Design: Single-part busbar module
- Number of poles: 3
- Overvoltage protection fault message: Optical, remote message via optional module
- Maximum continuous voltage UC: 255 V/AC
- Short circuit resistance ISCCR 25kA
- Maximum pre-fuse for spur line wiring: 160 A (GG)
- Connection type: screw terminals.
- Screw thread: M6
- Product type
Lightning conductor
- Leakage current
20 kA
- Nominal voltage
240 V AC
415 V AC
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
1168946
- Factory colour
Light grey
- Standards
IEC 61643-11
EN 61643-2012 + A11:2018

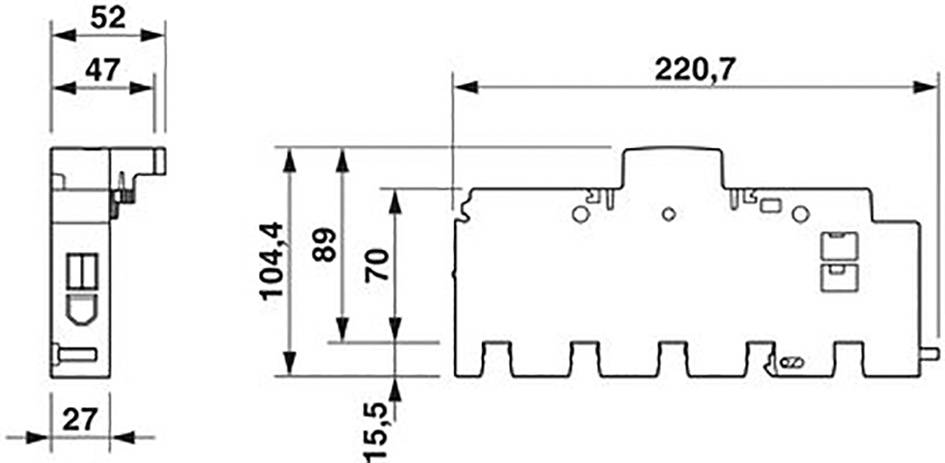

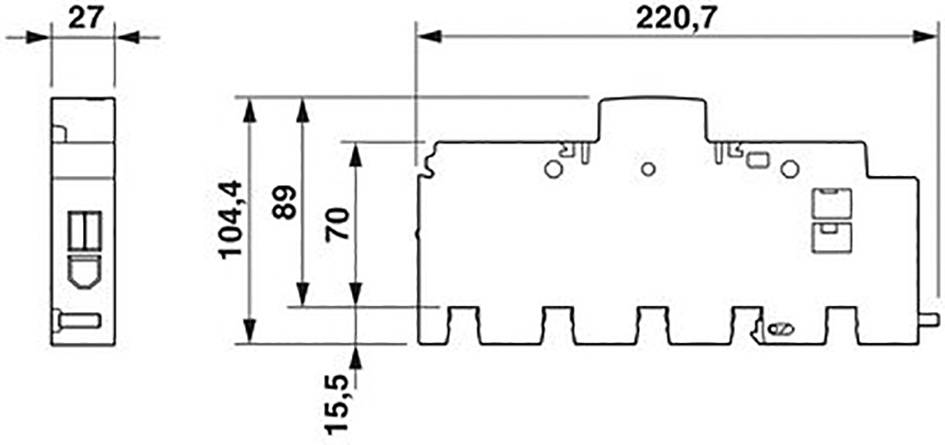

- Dim
(W x H x D) 27 x 222.7 x 104.4 mm
- Width
27 mm
- Height
222.7 mm
- Depth
104.4 mm
- Content
1 pc(s)
- Weight
620 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2435736 Phoenix Contact 1168946 FLT-SEC-ZP2-3C-255/12.5 Lightning conductor 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2435736 Phoenix Contact 1168946 FLT-SEC-ZP2-3C-255/12.5 Lightning conductor 20 kA 1 pc(s)
Description
Your advantages
Universal use – fits in every meter cabinet regardless of manufacturer thanks to a narrow width of only 27 mm
Installation in the precounting area thanks to conformity to the application rule VDE-AR-N 4100 – confirmed by VDE approval
Tool-free and secure mounting thanks to universal locking on 5 mm and 10 mm rail thickness
Integration in building control systems with optional telecommunications module

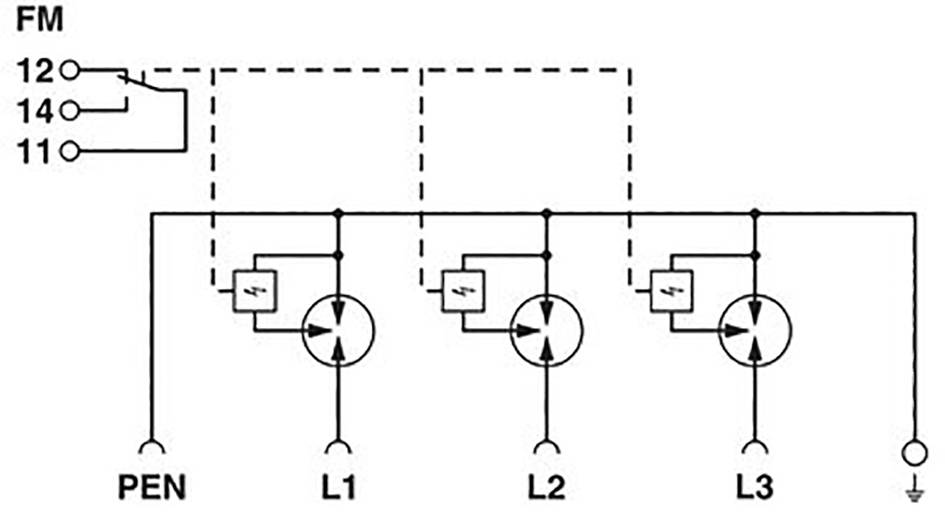

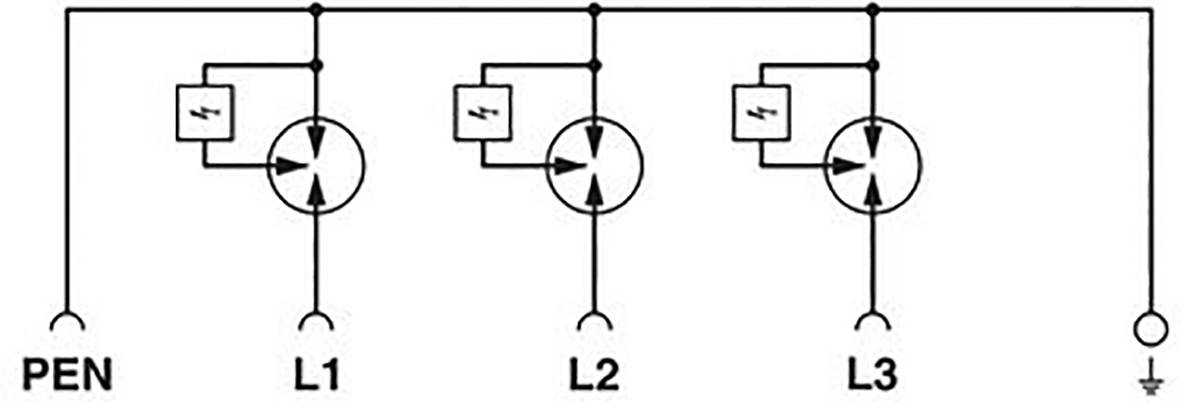

Lightning current arresters, according to type 1 / class I, for 3-phase power supply networks, with combined laid N and PE (L1, L2, L3, PEN). For lightning protection equipotential bonding according to lightning protection class III and IV. For mounting on 40 mm busbar systems.
