Buy Phoenix Contact 1170953 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

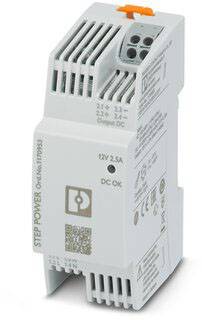

A grey STEP POWER power supply with an orange clip on top and connection terminals for 12V and 2.5A. Indicators show 'DC OK'.

Phoenix Contact 1170953 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)-1

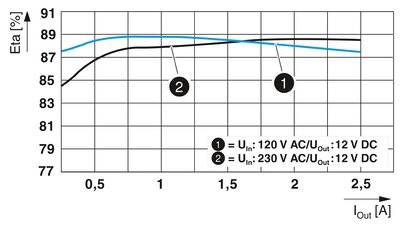

Graph shows the efficiency curve of a power supply unit at different input and output voltages. Axes: Power consumption (X) and efficiency in percentage (Y).

The diagram shows two line curves on an I_in/I_out graph. Line 1 has a steeper gradient compared to Line 2. Points illustrate voltage inputs for 120 V and 230 V AC/DC.

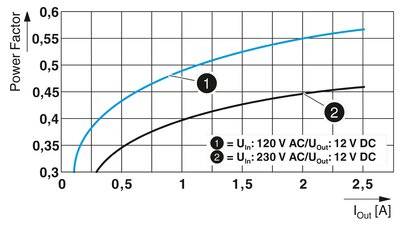

The diagram shows the power factor over the output current (I_out). Two curves: (1) 120 V AC to 12 V DC, (2) 230 V AC to 12 V DC. Curve (1) is positioned higher.

Diagram shows output power ('P_out' %) against height ('H' m). Power remains constant at 100% up to 2000 m, then drops to 80% at 5000 m.

'Schematic drawing of a STEP POWER power supply with dimensions 36x90 mm and 12V 2.5A output. QR code and technical specifications.'

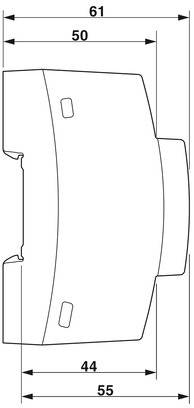

Technical drawing of a component with dimensions: Width 61, Height 50, lower widths 44 and 55.

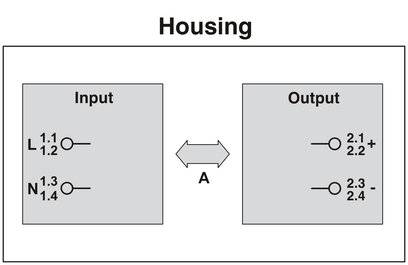

Schematic of an electrical circuit with input and output sockets. Connection shown with an A-arrow. 'Housing' is written at the top.

1/9

Datasheet (PDF)

Fast track dispatch on Mon, 28 Sep

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 42.01 / piece)

€ 55.45

-24 %

€ 42.01

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Power supply STEP-PS

Power increase up to 100%
Connection direction conductor / board: 45°
EN-60335 certification
Reduction of width by 1 TE
Efficiency 94 %
No-load losses <: 0.1 W

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
90 - 250 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 120 V AC

Output voltage: 12 V DC

Input voltage: 85 - 264 V/AC / 90 - 250 V DC

Input voltage (max.): 230 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 30 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 12 V DC

No. of outputs: 1 x

Connection: Push-in connector

Dim: (L x W x H) 61 x 36 x 90 mm

Weight: 0.150 kg

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Manufacturer part #: 1170953

Content: 1 pc(s)

Width: 36 mm

Height: 90 mm

Length: 61 mm

Type: STEP3-PS/1AC/12DC/2.5/PT

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 1170953 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2435751

This article

30 W

Push-in connector

230 V AC

12 V DC

115 V/AC230 V/AC90 - 250 V/DC

2.5 A

120 V AC

Phoenix Contact 1088495 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435744

15 W

Push-in connector

230 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

630 mA

120 V AC

Phoenix Contact 1088494 Rail mounted PSU (DIN) 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2435745

30 W

Push-in connector

230 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

1.3 A

120 V AC

Phoenix Contact 1088491 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:2435746

60 W

Push-in connector

230 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

2.5 A

120 V AC

Phoenix Contact 1140066 Rail mounted PSU (DIN) 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:2435747

96 W

Push-in connector

230 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

4 A

120 V AC

Phoenix Contact 1088478 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2435748

120 W

Push-in connector

230 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

5 A

120 V AC

Phoenix Contact 1170954 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435749

15 W

Push-in connector

230 V AC

5 V DC

115 V/AC230 V/AC90 - 250 V/DC

3 A

120 V AC

Phoenix Contact 1170952 Rail mounted PSU (DIN) 12 V DC 1.3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:2435750

15 W

Push-in connector

230 V AC

12 V DC

115 V/AC230 V/AC90 - 250 V/DC

1.3 A

120 V AC

Phoenix Contact 2868635 Rail mounted PSU (DIN) 24 V DC 0.83 A 18 W No. of outputs:1 x Content 1 pc(s)

Item no:511731

18 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

830 mA

85 V AC

Phoenix Contact 2868648 Rail mounted PSU (DIN) 24 V DC 1.9 A 42 W No. of outputs:1 x Content 1 pc(s)

Item no:511732

42 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 250 V/DC

1.9 A

85 V AC

Documents & Downloads

Datasheet

Datasheet 2435751 Phoenix Contact 1170953 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2435751 Phoenix Contact 1170953 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Description

The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output there are 24 V/DC and max. 0.5 A are available. Through the high degree of efficiency and low standby losses a high level of energy efficiency is achieved.

Features

Worldwide use of wide-range output and international approval package
High operational reliability thanks to high MTBF >500 000 h
Parallel switch bar for increased output and redundancy
Simplified operation by LED fault monitoring
High reliability through long mains buffering times> 20 ms
Snapped onto the DIN rail or screwing-on on flat surface.

What kind of DIN Rail PSUs are you looking for?

24V DIN rail PSU
DIN rail-mount PSU
