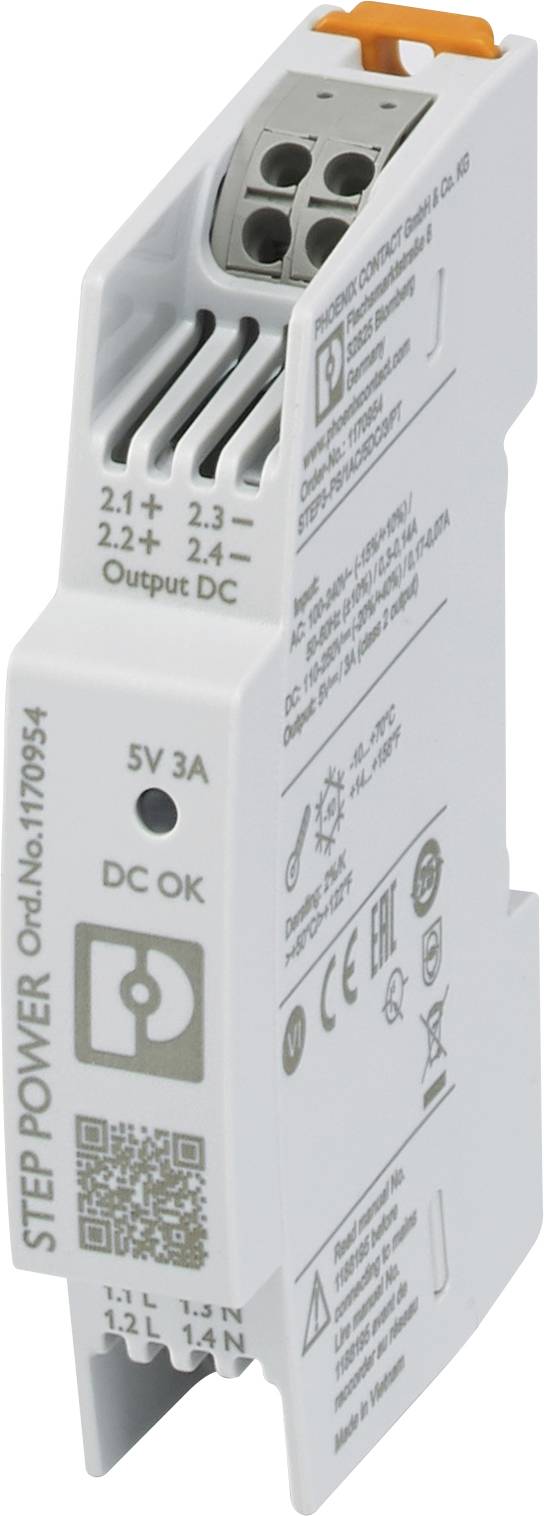

Phoenix Contact 1170954 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 48.73
-22 %
€ 37.81
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 1170954 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
- Power increase up to 100%
- Connection direction conductor / board: 45°
- EN-60335 certification
- Reduction of width by 1 TE
- Efficiency 94 %
- No-load losses <: 0.1 W
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
90 - 250 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
120 V AC
- Output voltage
5 V DC
- Input voltage
85 - 264 V/AC / 90 - 250 V DC
- Input voltage (max.)
230 V AC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
15 W
- Output type (power supply units)
Fixed voltage
- Phases
1
- Output voltage (nominal)
5 V DC
- No. of outputs
1 x
- Connection
Push-in connector
- Dim
(L x W x H) 61 x 18 x 90 mm
- Weight
0.082 kg
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Manufacturer part #
1170954
- Content
1 pc(s)
- Width
18 mm
- Height
90 mm
- Length
61 mm
- Max. temperature
70 °C
- Min. temperature
-10 °C
- Type
STEP3-PS/1AC/5DC/3/PT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2435749 Phoenix Contact 1170954 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2435749 Phoenix Contact 1170954 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
Description
The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output there are 24 V/DC and max. 0.5 A are available. Through the high degree of efficiency and low standby losses a high level of energy efficiency is achieved.
Features
- Worldwide use of wide-range output and international approval package
- High operational reliability thanks to high MTBF >500 000 h
- Parallel switch bar for increased output and redundancy
- Simplified operation by LED fault monitoring
- High reliability through long mains buffering times> 20 ms
- Snapped onto the DIN rail or screwing-on on flat surface.
