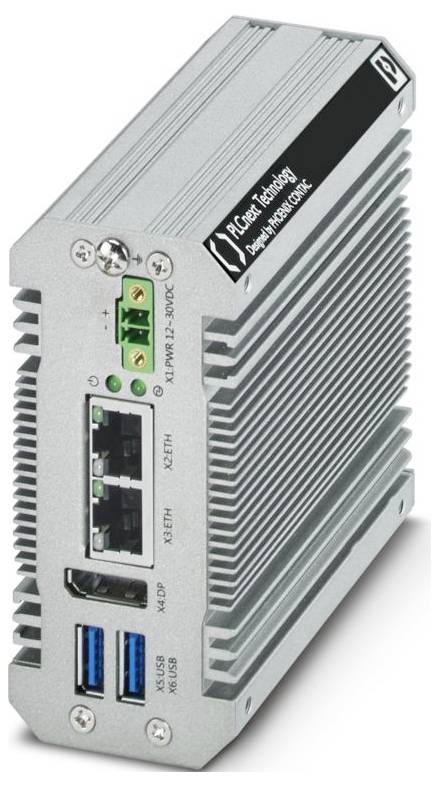

Image similar

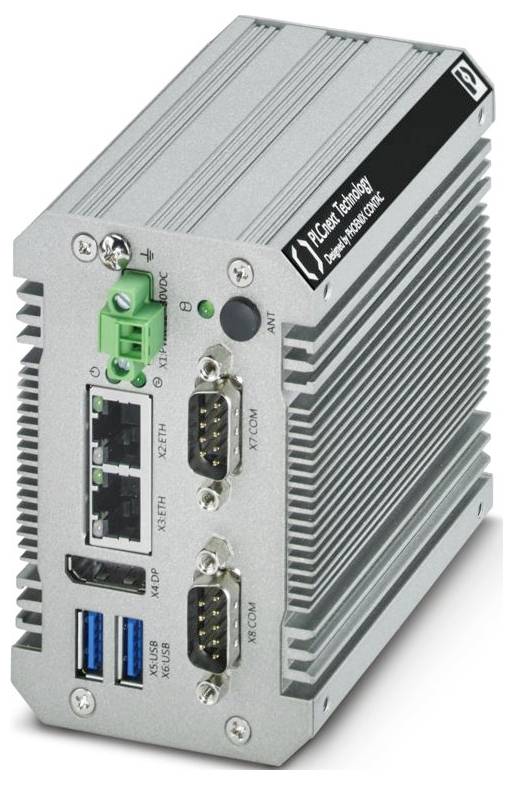

Phoenix Contact 1185423 EPC 1522 Edge device 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: PLCnext Control
- Design: Stand-alone
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Rail mounting;wall mounting
- Permissible air humidity (operation): 5 % ... 85% (no condensation)
- Vibration (operation): 1g, according to EN 60068-2-6
- Conformity/Approvals: Conformity/approvals
- External dimensions: External dimensions
- Width / height / depth: 99 mm / 92 mm / 63 mm
- Note for application: Only for industrial use
- Shock 15g, 11 ms, according to IEC 60068-2-27
- Supply: Supply
- Functionality: Functionality
- Supply voltage 24 V DC
- Interfaces: 1x DP++; 2x USB 3.0; 2x COM ports
- System requirements: System requirements
- Supported programming languages: Instruction list (STL/IL);runtime language (AS/SFC);contact plan (LAD/LD);function block language (FBS/FBD);structured text (ST);C++;C#;Java;Python®;Simulink®
- Processor Intel® Celeron® N3350 1.10 GHz
- Programmable via: High-level language;IEC 61131-3
- IEC-61131 runtime system: IEC-61131 runtime system
- Program memory 8 MB
- Data storage 12 MB
- Remanence data storage: Retentive data is not supported
- RAM: 4 GB LPDDR4
- Engineering tool: PLCnext Engineer;Eclipse®;Visual Studio®;MATLAB®/ Simulink®
- Display
- Display type: None
- Trusted Platform Module: FTPM 1.2 (non-Chinese encryption)
- Computer data: Computer data
- FCC Title 47 Part 15 Subpart B:2018 Class A
- Cooling: Passive
- LAN Chipset: Intel® I210-AT
- Manufacturer part #
1185423
- Type
EPC 1522
- Product type
Edge device
- Interfaces
1x DP++
2x USB 3.0
2x COM ports
- Display
No
- Max. ambient temperature
50 °C
- Min. ambient temperature
-20 °C
- Operating voltage
24 V DC
- Operating voltage
24 V / DC
- Height
92 mm
- Width
99 mm
IP30
- Content
1 pc(s)
- Dim
(W x H x D) 99 x 92 x 63 mm
- Fitting type (details)
Mounting rail mounting;Wall mounting
- Depth
63 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565685 Phoenix Contact 1185423 EPC 1522 Edge device 24 V DC
User & Safety Instructions
User & Safety Instructions 3565685 Phoenix Contact 1185423 EPC 1522 Edge device 24 V DC
Description
Edge Device with, 1x DP++, 2x USB 3.0, 2x COM ports, 1x Wireless LAN. (Bus system:)
