Buy Phoenix Contact 1187192 Distribution block 21.6 mm Pull spring Multicolour 1 Set

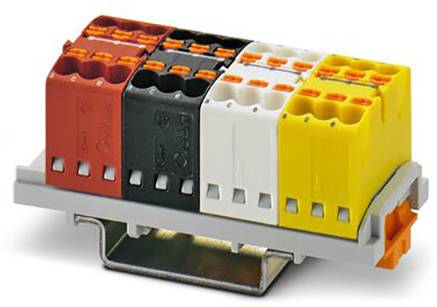

A row of electrical terminal blocks in various colours (red, black, white, yellow) on a mounting rail.

Image similar

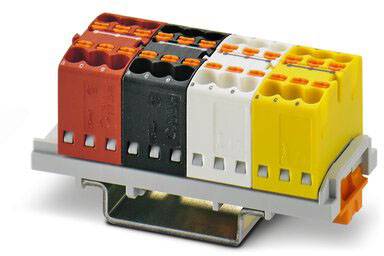

Four-colour cable clip on metal mounting; Red, Black, White, Yellow; facilitates the safe connection of electrical wires.

1/2

Image similar

Product type

Distribution block

Connection

Pull spring

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Nominal current - rounded value

17.5 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PTFIX 1,5-KNX-NS35

Technical specifications

MOUNTING TYPE NS 15, NS 35/7.5, NS 35/15

Product type: Distribution block

Features: + test option

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 2.5 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 21.6 mm

Number of pins: 24

Factory colour: Multicolour

Nominal current: 17.5 A

Nominal current - rounded value: 17.5 A

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 12 mm

Manufacturer part #: 1187192

Content: 1 Set

Type: PTFIX 1,5-KNX-NS35

Dim: (L x W x H) 43.1 x 27.6 x 21.4 mm

Width: 27.6 mm

Height: 21.4 mm

Length: 43.1 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Multicolour

Insulation material: PA

Insulation: PA.

Documents & Downloads

Datasheet

Datasheet 2435754 Phoenix Contact 1187192 Distribution block 21.6 mm Pull spring Multicolour 1 Set

User & Safety Instructions

User & Safety Instructions 2435754 Phoenix Contact 1187192 Distribution block 21.6 mm Pull spring Multicolour 1 Set

Description

Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.

This text is machine translated.
