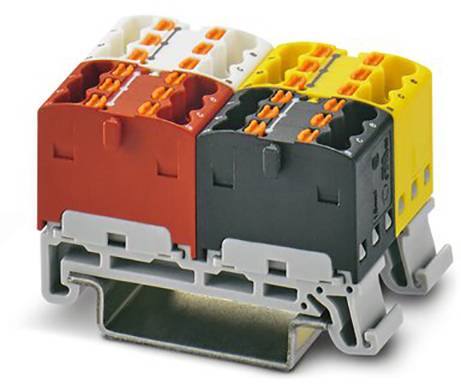

Phoenix Contact 1187193 Distribution block 27.6 mm Pull spring Multicolour 1 Set
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Pull spring
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Technical specifications
- Mounting type NS 35/7.5, NS 35/15
- Product type
Distribution block
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
27.6 mm
- Number of pins
24
- Factory colour
Multicolour
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
1187193
- Content
1 Set
- Type
PTFIX 1,5-KNX-NS35AD
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA.
Documents & Downloads
Datasheet
Datasheet 2435755 Phoenix Contact 1187193 Distribution block 27.6 mm Pull spring Multicolour 1 Set
User & Safety Instructions
User & Safety Instructions 2435755 Phoenix Contact 1187193 Distribution block 27.6 mm Pull spring Multicolour 1 Set
Description
Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3002765 PTFIX 6X1.5 RD
- 3002781 PTFIX 6X1.5 BK
- 3002778 PTFIX 6X1.5 WH
- 3002768 PTFIX 6X1.5 YE
- 1049497 PTFIX 1.5-NS35
