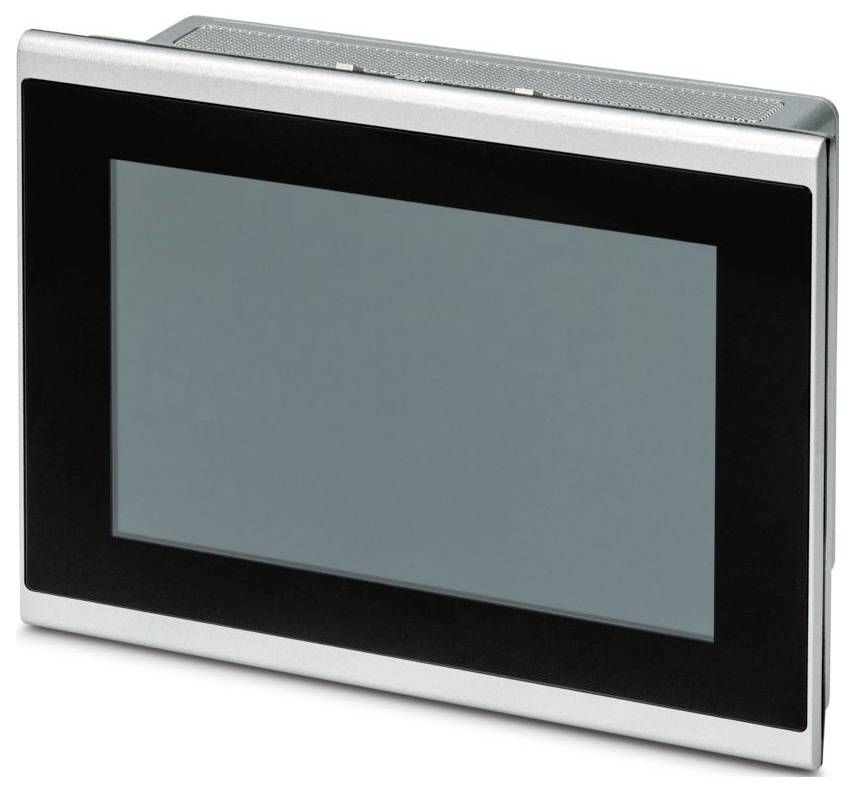

Phoenix Contact 1189629 TP 6070-WVPS Touchpanel 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 12
- Material housing: Aluminium die-cast alloy, powder coated
- Ambient conditions: Environmental conditions
- Protection class IP66 (on front), IP20 (on back)
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Mounting type: Front mounting
- Permissible air humidity (operation): 5 % ... 85% (no condensation)
- Vibration (operation): 1g
- Stripped length: 7 mm
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 2.5 mm².
- External dimensions: External dimensions
- Width / Height / Depth: 202 mm / 146 mm / 51 mm (front panel dimensions)
- Bus system: Without bus system
- Supply voltage range: 18 V ... 32 V
- Permissible humidity (storage/transport): 5 % ... 85% (no condensation)
- Note for application: Only for industrial use
- Mounting dimensions
- Supply: Supply
- Power consumption typical 0.61 A (Max. System configuration at 24 VDC)
- Power consumption max. 1.81 A (Max. System configuration at 24 VDC)
- Width / Height / Installation depth: 195 mm / 139 mm / (Installation cut-out)
- Supply voltage 24 V DC ±20 %
- Interfaces: 2x USB 2.0;1x COM (RS-232/422/485)
- MTBF: 50 000 h
- Real-time clock: Yes (battery-buffered)
- System requirements: System requirements
- Operating system: Windows® Embedded Compact 7
- Screen resolution 800 x 480 pixels (WVGA)
- Processor: ARM® Cortex®-A9, 800 MHz
- Flash eMMC, 8 GB memory
- Weighs 1.3 kg.
- Display
- Display type 17.8 cm / 7" TFT
- Computer data: Computer data
- Slots: 1x microSD
- Touch technology: Projective-capacitive (PCAP)
- LED display lighting type
- Brightness: 500 cd/m² typical (adjustable)
- Colour palette: 16.7 MIO. Colours
- Reading angle left: 89.00 °
- Reading angle: Right: 89.00°
- Reading angle up: 89.00 °
- Reading angle: Bottom: 89.00 °
- Optional interfaces: Without optional interface
- Network:1 x Ethernet (10/100/1000 MBit/s), RJ45
- User software: Visu+
- Runtime system: Visu+ Runtime
- Battery life 5 years (typical)
- Power supply 24 V DC ±20%
- Material front plate: Aluminium (natural anodized)
- Manufacturer part #
1189629
- Type
TP 6070-WVPS
- Product type
Touchpanel
- Type
7" TFT Display
- Interfaces
2x USB 2.0
1x COM (RS-232/422/485)
- Display
Yes
- Resolution
800 x 480 p
- Max. ambient temperature
50 °C
- Min. ambient temperature
-20 °C
- Operating voltage
24 V DC
- Operating voltage
24 V / DC
- Height
146 mm
- Length
51 mm
- Width
202 mm
IP66 (front)
IP20 (back panel)
- Content
1 pc(s)
- Dim
(L x W x H) 51 x 202 x 146 mm
- Fitting type (details)
Front mounting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565966 Phoenix Contact 1189629 TP 6070-WVPS Touchpanel 24 V DC
User & Safety Instructions
User & Safety Instructions 3565966 Phoenix Contact 1189629 TP 6070-WVPS Touchpanel 24 V DC
Description
Touch panel with 17.8 cm / 7"-TFT display (projective-capacitive (PCAP)), 800 x 480 pixels (WVGA), 16.7 MIO. Colours , Arm® Cortex®-A9, 800 MHz, 2x USB host 7, 1x COM (RS-232/100/1000/485), 1x Ethernet (10/422 MBit/s), RJ45, Windows® Embedded Compact 2.0 and user software: Visu+. (Bus system: Without)
