Name: Phoenix Contact 1190423 TP 6185-WHPS Touchpanel 24 V DC
Brand: Phoenix Contact
SKU: 3565822

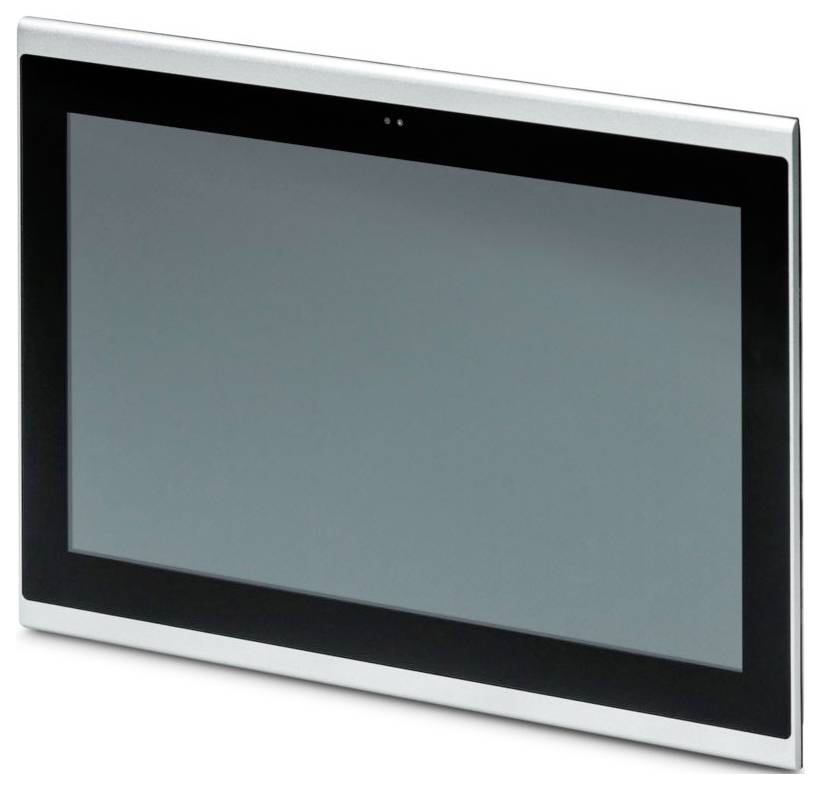

A sleek, rectangular computer monitor with a wide black bezel and a slim silver frame, angled slightly to the right against a neutral background.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Connection type: screw terminals.
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
Wire cross-section AWG: 24 ... 12
Material housing: Aluminium die-cast alloy, powder coated
Ambient conditions: Environmental conditions
Protection class IP66 (on front), IP20 (on back)
Ambient temperature (operation): 0 °C ... 50 °C
Ambient temperature (storage/transport): -20 °C ... 60 °C
Mounting type: Front mounting
Permissible air humidity (operation): 10 % ... 95% (no condensation)
Vibration (operation): 1g
Stripped length: 7 mm
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 2.5 mm².
External dimensions: External dimensions
Width / Height / Depth: 465 mm / 310 mm / 51 mm (front panel dimensions)
Bus system: Without bus system
Supply voltage range: 18 V ... 32 V
Permissible humidity (storage/transport): 5 % ... 85% (no condensation)
Note for application: Only for industrial use
Mounting dimensions
Supply: Supply
Power consumption typical 1.34 A (Max. System configuration at 24 VDC)
Power consumption max. 1.81 A (Max. System configuration at 24 VDC)
Width / Height / Installation depth: 455 mm / 300 mm / (Installation cut-out)
Supply voltage 24 V DC ±20 %
Interfaces: 2x USB 2.0;1x COM (RS-232/422/485)
MTBF: 50 000 h
Real-time clock: Yes (battery-buffered)
System requirements: System requirements
Operating system: Windows® Embedded Compact 7
Screen resolution 1920 x 1080 pixels (HD)
Processor: ARM® Cortex®-A9, 800 MHz
Flash eMMC, 8 GB memory
Weight: 5.2 kg
Display
Display type 46.9 cm / 18.5" TFT
Computer data: Computer data
Slots: 1x microSD
Touch technology: Projective-capacitive (PCAP)
LED display lighting type
Brightness: 350 cd/m² typical (adjustable)
Colour palette: 16.7 MIO. Colours
Reading angle left: 89.00 °
Reading angle: Right: 89.00°
Reading angle up: 89.00 °
Reading angle: Bottom: 89.00 °
Optional interfaces: Without optional interface
Network:1 x Ethernet (10/100/1000 MBit/s), RJ45
User software: Visu+
Runtime system: Visu+ Runtime
Battery life 5 years (typical)
Power supply 24 V DC ±20%
Material front plate: Aluminium (natural anodized)
