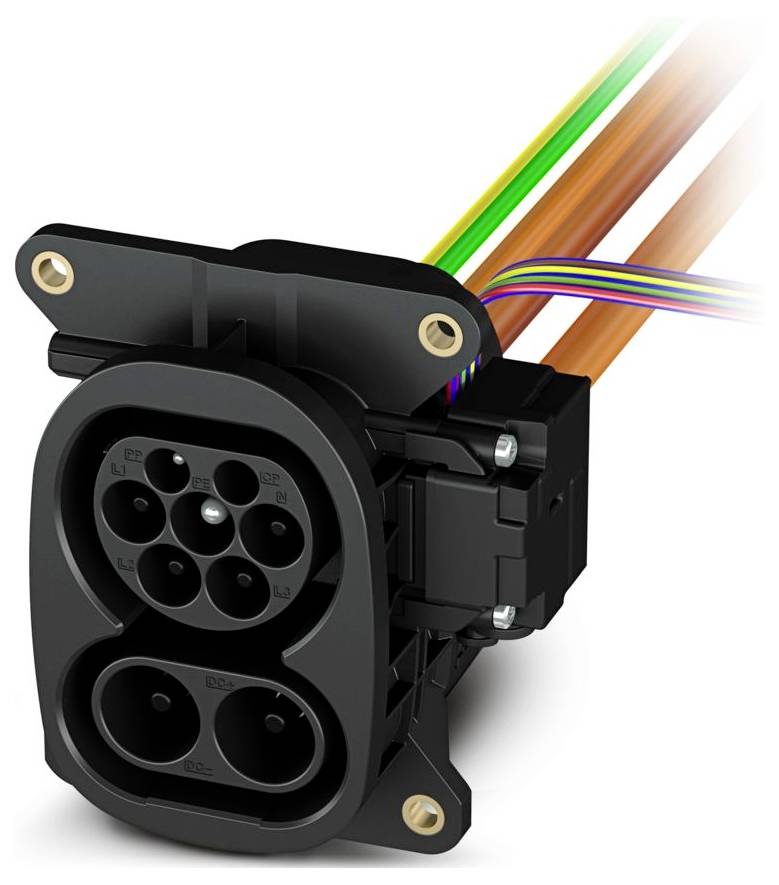

Phoenix Contact 1211201 eMobility charging port Type 2 32 A 1-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of communication contacts: 2
- LED integrated: No.
- Length of the fixed line: 2 m.
- Nominal current max. 32 A
- With locking actuator: Yes
- With access lock: Yes
- Cross-section of the power contacts: 35-35 mm²
- Current type AC 1-phase
- Product type
eMobility charging port
- Charger connectors
Type 2
- Cable length
2 m
- Nominal voltage
250 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Length
12.84 cm
- Width
10.8 cm
- Height
14.025 cm
- No. of phases
1-phase
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566395 Phoenix Contact 1211201 eMobility charging port Type 2 32 A 1-phase
User & Safety Instructions
User & Safety Instructions 3566395 Phoenix Contact 1211201 eMobility charging port Type 2 32 A 1-phase
Description
CHARX connect universal, AC / DC CCS type 2, vehicle charging socket, up to 500 A in boost mode, 125 A continuous, 1000 V DC, 32 A, 250 V AC, Single wires, length: 2 m, locking actuator: 24 V, 4-pin, front and rear wall mounting, M6, enclosure: black, AC charging and DC charging, IEC 62196-2, IEC 62196-3, DC and AC charging includes a protective cap.
