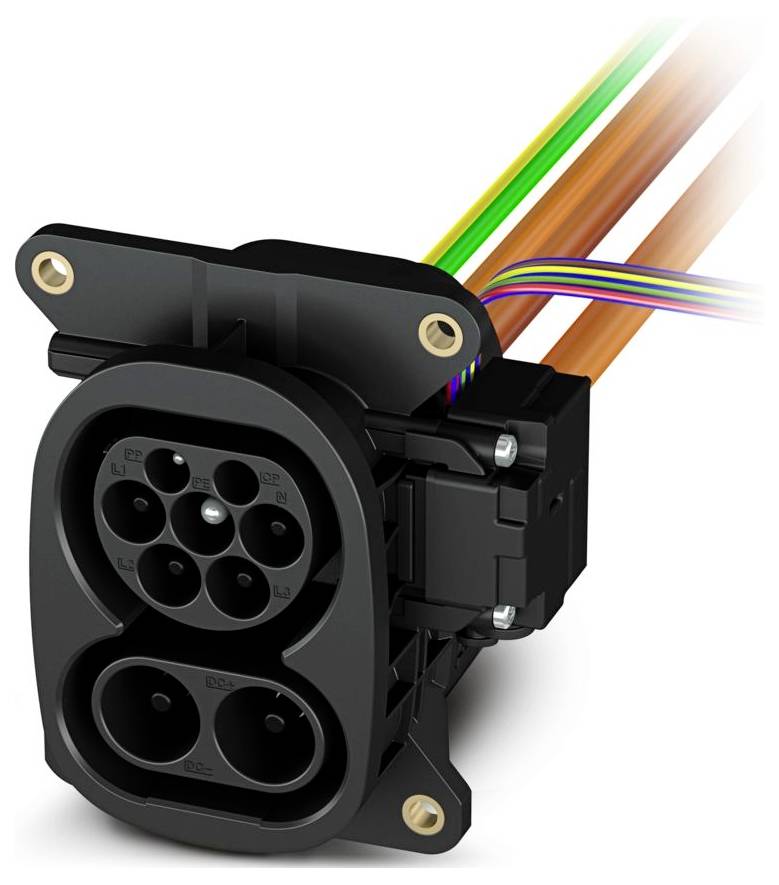

Phoenix Contact 1211220 eMobility charging port Type 2 250 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of communication contacts: 2
- LED integrated: No.
- Length of the fixed line: 2 m.
- Nominal current max. 250 A
- With locking actuator: Yes
- With access lock: Yes
- Current type DC
- Product type
eMobility charging port
- Charger connectors
Type 2
- Charging mode
Mode 4
- Cable length
2 m
- Nominal voltage
1000 V
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Length
13.35 cm
- Width
10.8 cm
- Height
14.025 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566413 Phoenix Contact 1211220 eMobility charging port Type 2 250 A
User & Safety Instructions
User & Safety Instructions 3566413 Phoenix Contact 1211220 eMobility charging port Type 2 250 A
Description
CHARX connect universal, DC CCS type 2, vehicle charging socket, up to 500 A in boost mode, 250 A continuous, 1000 V DC, single wires, length: 2 m, Locking actuator:24 V, 4-pin, front and rear panel mounting, M6, housing: black, For charging with direct current (DC), IEC 62196-2 , IEC 62196-3, for the DC contacts a protective cap is included in the delivery.
