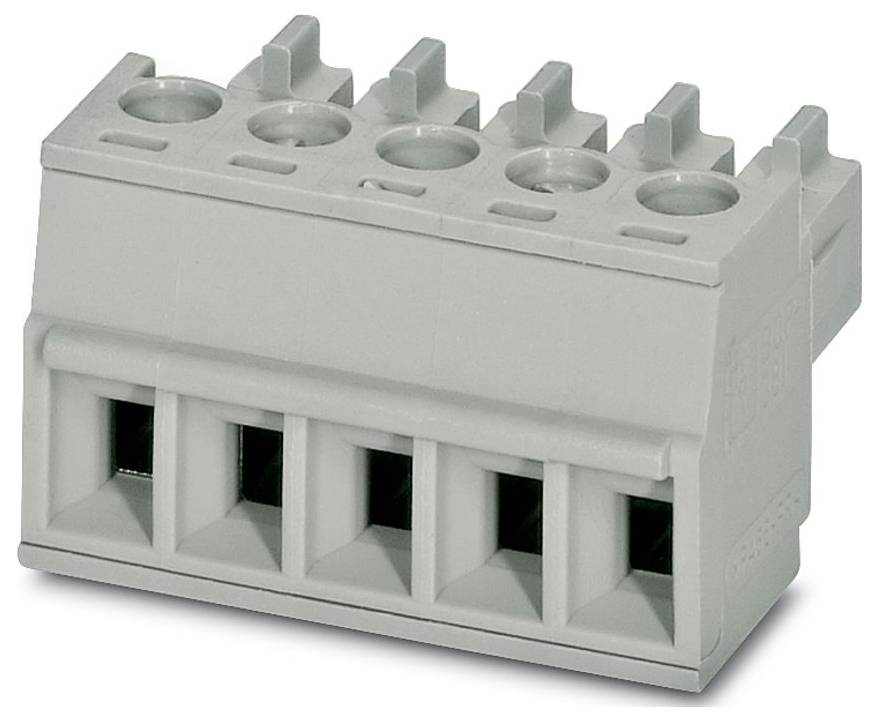

Image similar
Image similar
Phoenix Contact 1218750 PCB connector 2000 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Content
2000 pc(s)
Case material
PA
Manufacturer part #
1218750
Type
BCP-381- 3 BK BDWH:0+-
Datasheet (PDF)
Highlights & Details
PCB connector
- Content 2000 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Wire cross-section with single wire connections: 0.2-1.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.25 to 0.5 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.2-1.5 mm²
- Number of plug contact rows: 1
- Design of electrical connection: Screw connection
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Operating temperature 40 °C
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Grid dimension of the connections 3.81 mm
- Contact spacing 3.81 mm
- Connection type: Other
- Pollution level: 2
- Material of the contact coating: Tin
- Housing material: Other
- Material of the insulating body: Polyamide (PA)
- Material of contact: Copper
- Angle contact/conductor connection: Other
- Over voltage category III
- Product type
PCB connector
- Case material
PA
- Manufacturer part #
1218750
- Content
2000 pc(s)
- Type
BCP-381- 3 BK BDWH:0+-
- Case colour
Black
- Rated voltage
160 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566757 Phoenix Contact 1218750 PCB connector 2000 pc(s)
User & Safety Instructions
User & Safety Instructions 3566757 Phoenix Contact 1218750 PCB connector 2000 pc(s)
Description
PCB connector, nominal cross-section: 1.5 mm², color: Black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Bush, number of rows: 1, number of rows: 3, product family: BCP, grid dimension: 3.81 mm, connection type: Screw connection with pull-out sleeve, screw attack shape: L longitudinal slot, connection direction conductor/board: 0 °, connector system: BASICLINE 1.5, locking: Without carton type
This text is machine translated.
