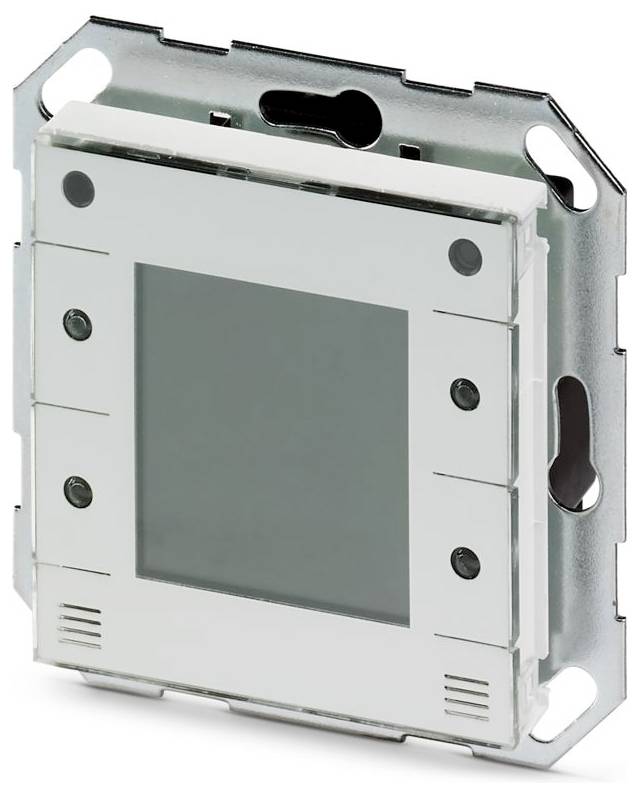

Phoenix Contact 1222437 ERS 1000-R WH Room control unit 48 V DC/AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -10 °C ... 40 °C).
- Ambient temperature (storage/transport): -30 °C ... 80 °C
- Mounting type: Flush-mounted socket
- Insulation properties: Insulation properties
- Maximum power loss at rated conditions 2.4 W.
- Protection class III
- Note for application: Only for industrial use
- Mounting dimensions
- Supply: Supply
- Width / Height / Installation depth: 56 mm / 56 mm / 50 mm (installation in flush-mounted box)
- Supply voltage 48 V DC
- Display
- Display type 4.6 cm / 1.8" TFT
- Computer data: Computer data
- Network: 2x Ethernet (10/100 MBit/s), RJ45
- Audio: Built-in speakers
- Buttons: 4
- Special equipment: Brightness sensor; approximation sensor
- Colour (actuator): White (RAL 9016)
- Product type
Room control unit
- Type
1.8" TFT Display
- Display
Yes
- Type
ERS 1000-R WH
- Max. ambient temperature
40 °C
- Min. ambient temperature
-10 °C
- Manufacturer part #
1222437
- Operating voltage
48 V DC/AC
- Height
56 mm
- Length
50 mm
- Width
56 mm
IP30
- Dim
(L x W x H) 50 x 56 x 56 mm
- Fitting type (details)
Flush-mounted socket
- Recess depth
50 mm
- Interfaces
RJ45
- Operating voltage
48 V / DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566730 Phoenix Contact 1222437 ERS 1000-R WH Room control unit 48 V DC/AC
User & Safety Instructions
User & Safety Instructions 3566730 Phoenix Contact 1222437 ERS 1000-R WH Room control unit 48 V DC/AC
Description
Room operating device with, 2x Ethernet (10/100 MBit/s), RJ45. (Bus system:)
