Phoenix Contact 1225195 ERS 1000-SCRT WH Sensor
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -10 °C ... 40 °C).
- Ambient temperature (storage/transport): -20 °C ... 60 °C
- Mounting type: Flush-mounted socket
- Protection class III
- Mounting dimensions
- Width / Height / Installation depth 55 mm / 55 mm / 20 mm
- Colour (housing top): White (RAL 9010)
- Material (upper case section): ABS
- Product type
Sensor
- Type
ERS 1000-SCRT WH
- Max. ambient temperature
40 °C
- Min. ambient temperature
-10 °C
- Manufacturer part #
1225195
- Height
55 mm
- Length
20 mm
- Width
55 mm
IP30
- Dim
(L x W x H) 20 x 55 x 55 mm
- Fitting type (details)
Flush-mounted socket
- Factory colour
White
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566753 Phoenix Contact 1225195 ERS 1000-SCRT WH Sensor
User & Safety Instructions
User & Safety Instructions 3566753 Phoenix Contact 1225195 ERS 1000-SCRT WH Sensor
Description

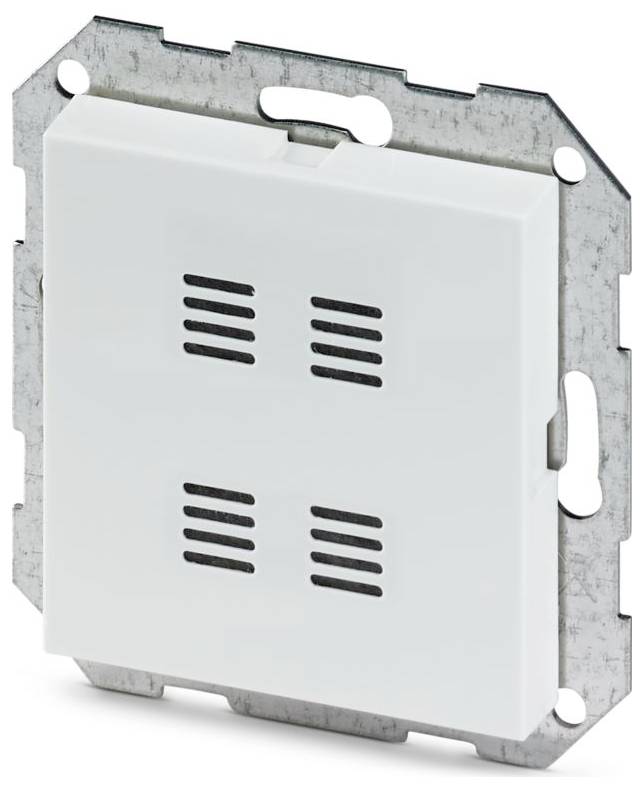

Sensor module for the space control device ERS 1000 for measuring CO2 concentration, relative humidity and temperature, color: White
