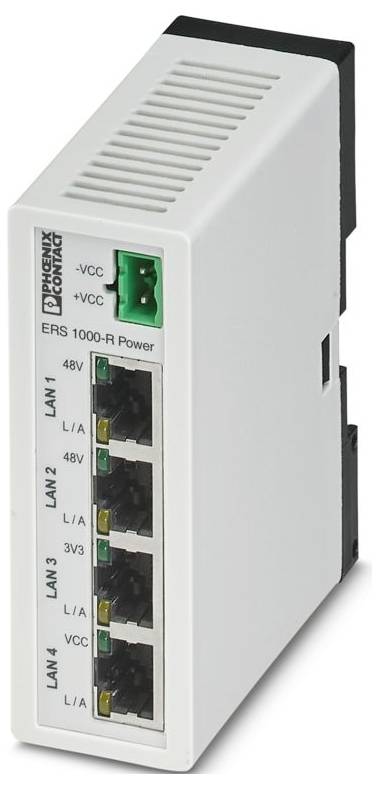

Phoenix Contact 1225200 ERS 1000-R POWER Power Supply
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- RJ45 socket connection
- Width 35 mm
- Height: 95 mm
- Depth: 76 mm
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -10 °C ... 40 °C).
- Ambient temperature (storage/transport): -30 °C ... 80 °C
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Mounting position: Vertical
- Transmission speed 10/100 MBit/s
- Protection class III
- Number of interfaces: 4
- Ethernet: Ethernet
- Bus system RJ45
- Included: MSTB 2.5/ 2-ST-5.08 plug
- Input voltage range: 22 V DC ... 30 V DC (ripple max. 2 VSS)
- Article dimensions: Article dimensions
- Colour (housing): Light gray (RAL 7035)
- Product type
Power Supply
- Type
ERS 1000-R POWER
- Max. ambient temperature
40 °C
- Min. ambient temperature
-10 °C
- Manufacturer part #
1225200
- Height
95 mm
- Length
76 mm
- Width
35 mm
IP30
- Dim
(L x W x H) 76 x 35 x 95 mm
- Fitting type (details)
Carry rail mounting
- Depth
76 mm
- Recess height
95 mm
- Interfaces
RJ45
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566738 Phoenix Contact 1225200 ERS 1000-R POWER Power Supply
User & Safety Instructions
User & Safety Instructions 3566738 Phoenix Contact 1225200 ERS 1000-R POWER Power Supply
Description
Ethernet switch with integrated power supply for the ERS 1000-R room control devices with power supply to the Ethernet cable. The switch possesses 4 ports and enables the line cabling of up to 2x 10 devices via 2 ports.
