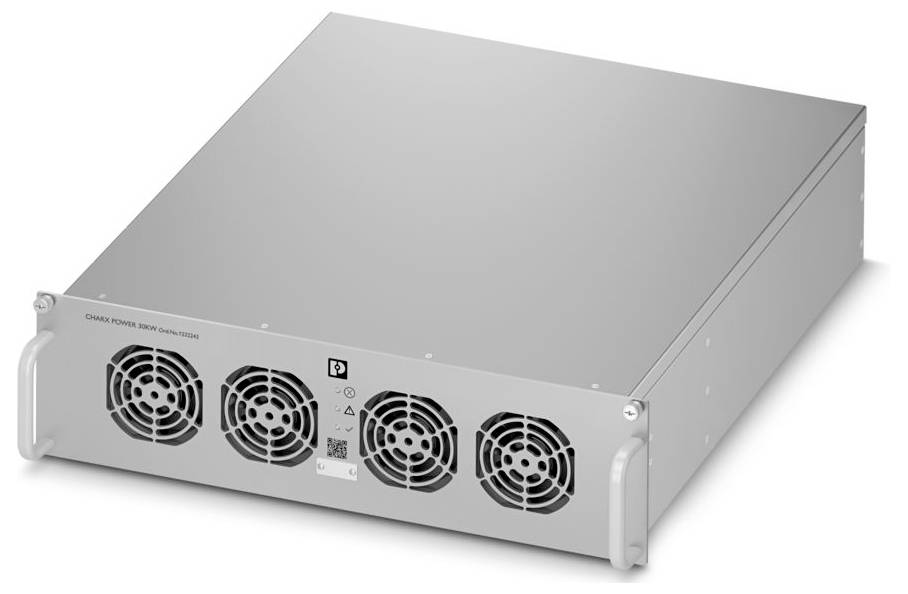

Phoenix Contact 1232243 CHARX PS-M2/3AC/1000DC/30KW DC power unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Charx Power basic
- Connection type 2x RJ45
- Width 483 mm
- Height: 134 mm
- Depth: 550 mm
- Material of housing: Zn-Al alloy
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- ANSI/UL 2202 standards/regulations
- 19" rack mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Permissible air humidity (operating): ≤ 95% (non-condensing)
- Stripping length: 18 mm ... 20 mm (10 mm² ... 25 mm² = 18 mm, 35 mm² ... 50 mm² = 20 mm)
- Height unit 3 HE
- Transmission speed 125 kBit/s
- IEC labeling
- Protection class: I
- Rated output: 30 kW
- Number of interfaces: 1
- Transfer length: Max. 20 m.
- Connection technology: Connection technology
- Rated input voltage range: 3x 400 V AC ... 480 V AC
- Input voltage range: 3x 340 V AC ... 530 V AC
- Switch-on current surge limitation < 60 A.
- Nominal power intake 31870 VA
- Efficiency- > 95% (Pout >50 %)
- Protection against overvoltage at output (OVP): > 1040 V DC
- Wire connection: Conductor connection
- rigid: 10 mm² ... 50 mm²;25 mm² (recommended)
- flexible: 16 mm² ... 50 mm²;25 mm² (recommended)
- Output: Output
- Digital: Digital
- Number of phases: 3
- Insulation voltage input/output 2121 V DC
- MTBF (IEC 61709, SN 29500) > 300000 HRS
- Article dimensions: Article dimensions
- Operating height: ≤ 4000 m (derating > 2000 m: 10 % / 1000 m)
- Standard for Safety for Electric Vehicle (EV) Charging System Equipment
- AWG: 8 ... 0 (Cu);3 (recommended)
- AC operation: AC operation
- Network type: Star network (TN, TT, IT (PE))
- Power factor (cos phi) 0.99
- Derating > 55°C (3.2 A/K);> 55°C (1 kW/K)
- Control deviation: < 0.5 % (voltage deviation load variation static 20 % ... 100 < %); 1 % (current deviation load variation static 20 % ... 100 %);± 0.2 % (input voltage change ±20 %)
- Emissions: IEC 61000-6-3
- Immunity speed IEC 61000-6-2
- Pole marking +, -
- CAN bus: CAN bus
- CAN bus interface
- Supported protocols: CAN 2.0B
- Lock: Snap hook
- Transmission physics: Cable-bound
- Topology: Daisy chain
- Terminating resistance: 120 Ω (terminate end user)
- Total distortion (THDi): < 5 % (50 % ... 100 % output load)
- Output voltage range: 30 V DC ... 1000 V DC
- Output current range: 0 A ... 100 A
- Power loss Stand-by < 14 W
- Designation: Output
- Galvanic isolation between input and output: Yes
- Insulation voltage input, output/housing 2121 V DC (base insulation)
- Internal fans: Yes
- Air flow direction: From front to back
- Noise level < 60 dB (1 m)
- IEC 60664-1: II.
- Conductive charging systems for electric vehicles - Part 21-2: EMC requirements for external charging systems for electric vehicles: Conductive charging systems for electric vehicles - Part 21-2: EMC requirements for external charging systems for electric vehicles
- Input current: 3x 54 A (340 V AC);3x 46 A (400 V AC)
- Insulation resistance > 10 MΩ
- Switch-on delay < 8 s.
- Overshoot behavior: ± 3 % (switch-on process)
- Number of power modules as CAN BUS nodes: Max. 48
- Insulation voltage input, output/signal, communication 4242 V DC
- Insulation voltage signal, communication/housing 707 V DC
- Lifetime: 90000 h (40 °C, electrolytic capacitors);70000 h (40 °C, fan)
- Over temperature protection (OTP) > 75 °C
- Conductive charging systems for electric vehicles - Part 1: General requirements: Conductive charging systems for electric vehicles - Part 1: General requirements
- Conductive charging systems for electric vehicles – Part 23: DC power supply systems for electric vehicles: Conductive charging systems for electric vehicles – Part 23: DC power supply equipment for electric vehicles
- Standard for Safety for Electric Vehicle (EV) Charging System Equipment: Standard for Safety for Electric Vehicle (EV) Charging System Equipment
- Input frequency: 3x 50 Hz 60 Hz ±10 %
- Ripple output current ≤ 1%
- Hot-PLUG connection: No.
- Ventilation: No.
- Product type
DC power unit
- Protection class
I
- Depth
550 mm
- Height
134 mm
- Width
483 mm
IP20
- Recess height
134 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566939 Phoenix Contact 1232243 CHARX PS-M2/3AC/1000DC/30KW DC power unit
User & Safety Instructions
User & Safety Instructions 3566939 Phoenix Contact 1232243 CHARX PS-M2/3AC/1000DC/30KW DC power unit
Description
Charx Power basic, quick charge module for DC charging stations, 19" rack mounting, input: 3-phase, output: 30 V DC...1000 V DC / 0 A...100 A.
