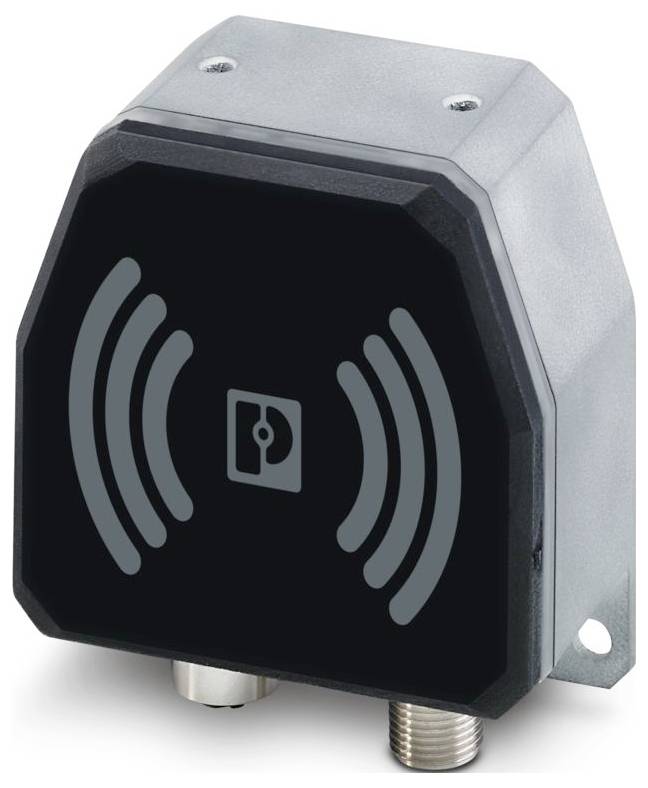

Phoenix Contact 1234224 NEARFI PD 2A ETH B Inductive couplers
EAN:
Part number:
Item no:
Technical specifications
- Rated supply voltage DC 19-30 V
- Direct mounting possible: No.
- Protection class (NEMA): Other
- Voltage type of supply voltage: DC
- Rail mounting possible: Yes
- Type
NEARFI PD 2A ETH B
- Product type
Inductive couplers
- Manufacturer part #
1234224
- Dim
(L x W x H) 10 x 80 x 86 mm
- Width
80 mm
- Height
86 mm
- Length
10 mm
- Depth
39 mm
IP65
- Recess height
86 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3566857 Phoenix Contact 1234224 NEARFI PD 2A ETH B Inductive couplers
Description
NearFi Base, AC Power and Real Time Ethernet Coupler, 50 W (US), 100 Mbps, range ≤10 mm, M12-Screw connection, IP65, in combination with NEARFI PD 2A ETH R. Incompatible with NEARFI 2200 (New)
