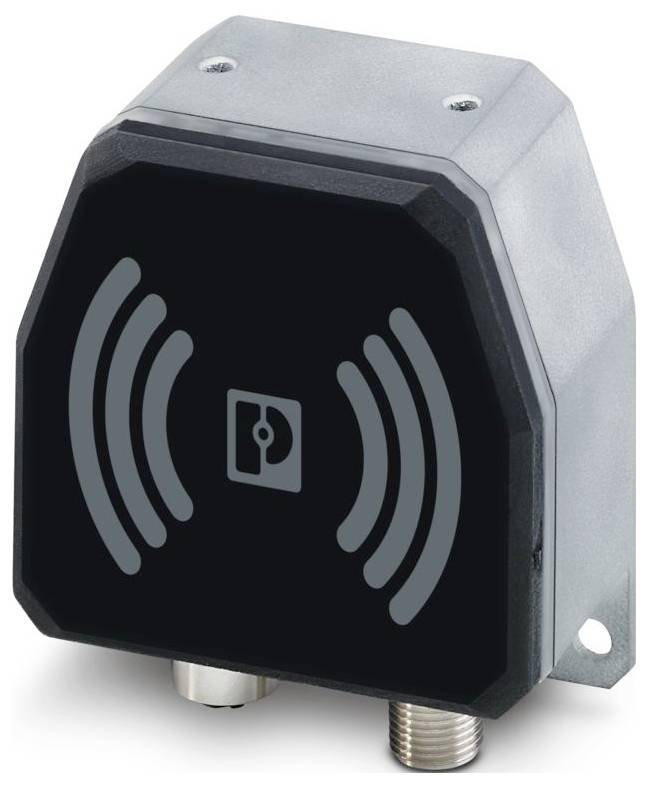

Phoenix Contact 1234234 NEARFI D ETH R Inductive couplers
EAN:
Part number:
Item no:
Technical specifications
- Rated supply voltage DC 19-30 V
- Direct mounting possible: No.
- Protection class (NEMA): Other
- Voltage type of supply voltage: DC
- Rail mounting possible: Yes
- Type
NEARFI D ETH R
- Product type
Inductive couplers
- Manufacturer part #
1234234
- Dim
(W x H x D) 80 x 86 x 39 mm
- Width
80 mm
- Height
86 mm
- Depth
39 mm
IP65
- Recess height
86 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3566940 Phoenix Contact 1234234 NEARFI D ETH R Inductive couplers
Description
NearFi base, real-time contactless Ethernet coupler, 100 Mbit/s, range ≤40 mm, M12 screw connection, IP65, in combination with NEARFI D ETH R. Incompatible with NEARFI 2000 (New)
