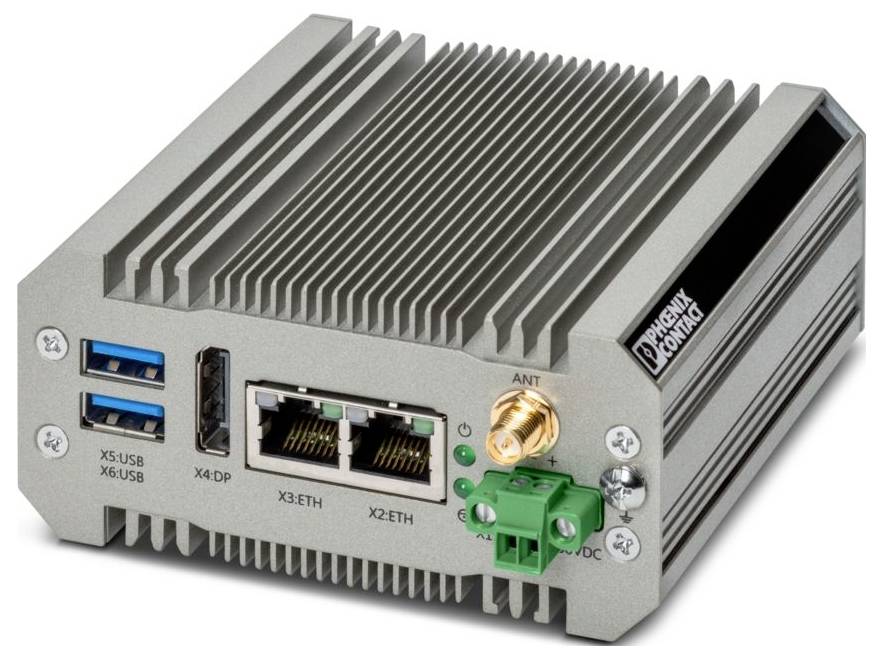

Phoenix Contact 1272688 BL2 BPC 1541S-4/64-W10 Box PC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- Conductor cross-section flexible: 0.14 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.14 mm² ... 1.5 mm².
- Wire cross-section AWG: 28 ... 16
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -40 °C ... 70 °C (with 0.5 m/s air flow. CAUTION: Operation at ambient temperatures greater than 60 °C will void UL approval.)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Mounting type: Rail mounting;wall mounting (accessories required)
- Permissible air humidity (operation): 5 % ... 85% (no condensation)
- Vibration (operation): 1g, according to EN 60068-2-6
- Stripped length: 7 mm
- Conformity/Approvals: Conformity/approvals
- Maximum power loss at rated conditions 16.8 W.
- External dimensions: External dimensions
- Width / height / depth: 99 mm / 92 mm / 46 mm
- Supply voltage range: 12 V DC ... 30 V DC (operating voltage according to the marking is 12 ... 30 V DC
- Note for application: Only for industrial use
- Shock 15g, 11 ms, according to IEC 60068-2-27
- Supply: Supply
- Typical current consumption 0.53 A (24 V DC)
- Max. Power consumption 0.7 A (24 V DC)
- Interfaces: 1x DP++; 2x USB 3.0
- Windows® 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language
- Processor: Intel® Atom™ E3940 (1.6 GHz)
- Data memory: EMMC internal, 64 GB
- RAM: 4 GB LPDDR4
- Supply voltage (DC): 24 V DC ±20 % (CE rating)
- Display
- Display type: None
- Computer data: Computer data
- Network: 2x Ethernet (10/100/1000 MBit/s), RJ45
- User software: Without user software
- Power supply: Power supply
- Cooling: Passive
- LAN Chipset: Intel® I210-AT
- Manufacturer part #
1272688
- Type
BL2 BPC 1541S-4/64-W10
- Product type
Box PC
- Interfaces
1x DP++
2x USB 3.0
- Display
No
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Operating voltage
24 V / DC
- Height
92 mm
- Width
99 mm
IP30
- Content
1 pc(s)
- Dim
(W x H x D) 99 x 92 x 46 mm
- Fitting type (details)
Mounting rails;wall mounting (accessories required)
- Depth
46 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3568116 Phoenix Contact 1272688 BL2 BPC 1541S-4/64-W10 Box PC
User & Safety Instructions
User & Safety Instructions 3568116 Phoenix Contact 1272688 BL2 BPC 1541S-4/64-W10 Box PC
Description
An industrial fan-less box PC (BPC) with an IP30 degree of protection and an energy-efficient Intel® Atom® E3940 processor with 64 GB eMMC and Windows 10 Enterprise 2019 LTSC operating system.
