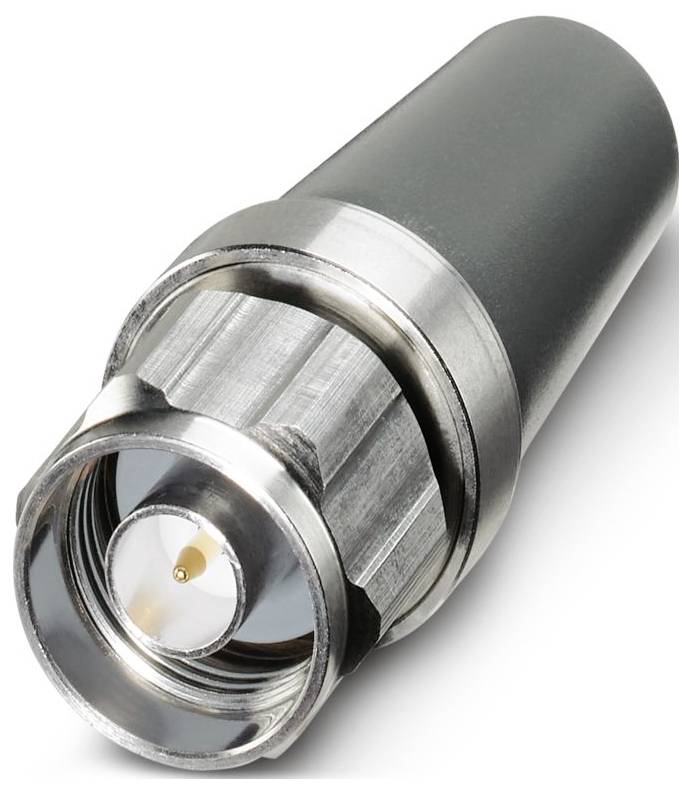

Phoenix Contact 1284780 ANT-OMNI-2459-04 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connector type N (male)
- Flammability class to UL 94: HB
- Ambient conditions: Environmental conditions
- Protection class IP68/IP69K
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 50155
- Note: Railway application
- Mounting type: Control cabinet assembly
- Shock (Operation): According to EN 61373 (Category 1, Class B)
- Vibration (operation): According to EN 61373 (category 1, class B)
- Length: 55 mm
- Frequency range: 1.7 GHz ... 7.1 GHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 2.00
- Material: ASA, Acryl tester styrene nitrile
- Diameter 22 mm
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Mounting instructions: Accessories necessary;outer and inner area
- Electronic equipment on rail vehicles: Electronic equipment on rail vehicles
- Impedance 50 Ω
- Frequency band:2.4 GHz;5 GHz;6 GHz
- Gain: 1.5 dBi (1.7 GHz ... 2.0 GHz);2 dBi (2.0 GHz ... 2.7 GHz);1.5 dBi (2.7 GHz ... 4.2 GHz);2.5 dBi (4.9 GHz ... 5.9 GHz);3 dBi (5.9 GHz ... 7.1 GHz
- Polarisation: linear, vertical
- Maximum power 120.00 W.
- Radiation characteristics: Unidirectional
- Type
ANT-OMNI-2459-04
- Product type
Antenna
- Manufacturer part #
1284780
- Dim
(L x W x H) 55 x 21.9 x 21.9 mm
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Width
21.9 mm
- Height
21.9 mm
- Length
55 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
22 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3582749 Phoenix Contact 1284780 ANT-OMNI-2459-04 Antenna
User & Safety Instructions
User & Safety Instructions 3582749 Phoenix Contact 1284780 ANT-OMNI-2459-04 Antenna
Description
Multi-band omnidirectional antenna for free movable applications, compact design, frequency band: 2.4 GHz / 5 GHz / 6 GHz, gain: 2.0 dBi / 2.5 dBi / 3.0 dBi, protection class: IP68/IP69K, shock and vibration-proof, connection: N (male)
