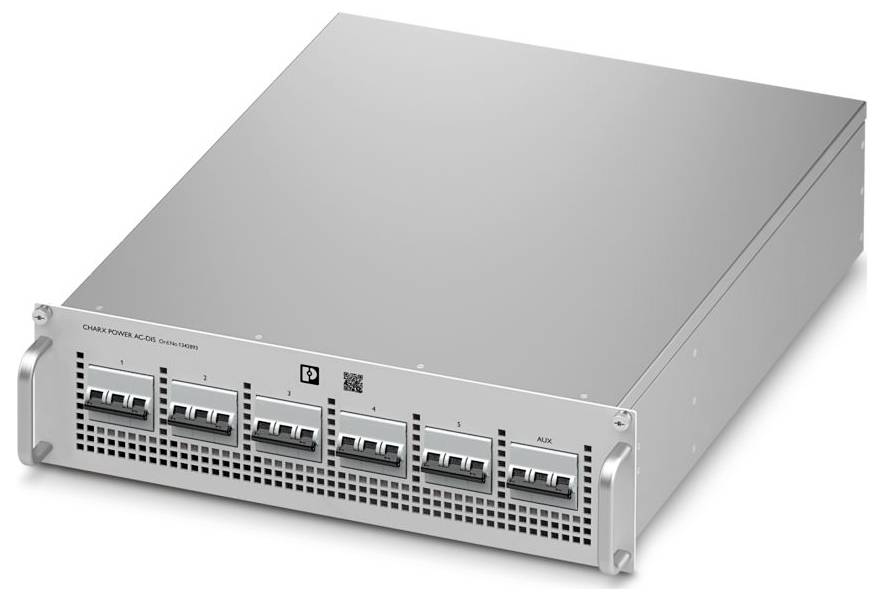

Phoenix Contact 1342893 CHARX AC-DIS/150KW AC splitter unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Charx Power distribution
- Push-in spring-loaded connection type
- Width 483 mm
- Height: 134 mm
- Depth: 598 mm
- Material of housing: Zn-Al alloy
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Standards/regulations: IEC 61851-1
- 19" rack mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Permissible air humidity (operating): ≤ 95% (non-condensing)
- UL specifications: UL specifications
- Stripped length: 10 mm
- Height unit 3 HE
- Nominal leakage surge current In:20 kA
- Frequency range: 50 Hz ... 60 Hz ±10 %
- Protection class: I
- Rated output: 150 kW
- Signals: Signals
- Input voltage range: 3x 400 V AC ... 480 V AC -15 % ... +10 %
- Wire connection: Conductor connection
- rigid: 0.2 mm² ... 4 mm².
- flexible: 1.5 mm² ... 16 mm²
- Flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 1.5 mm².
- Flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
- Rigid (AWG): 24 ... 12
- Connector marking: Overvoltage protection (SPD)
- Function: Forwarding operating state
- Switch contact (potential-free): Closer contact
- Article dimensions: Article dimensions
- Operating height: ≤ 2000 m
- Standard designation: Conductive charging systems for electric vehicles - Part 1: General requirements
- EMC requirements Emission of interference: EN 61000-6-3
- EMC requirements Immunity: EN 61000-6-1
- Mains type: Star network (TN-S, TT)
- Output power: Output power
- Signal output: Signal output
- Switching voltage: 30 V/DC
- Ampacity 1 A
- Output voltage range: 3x 400 V AC ... 480 V AC (L1...L3, N)
- Naming: Signals
- Galvanic isolation between input and output: No.
- Internal fans: Yes
- Air flow direction: From front to back
- Noise level < 67 dB (1 m)
- IEC 60664-1: III.
- Input current 3x 232 A
- Conductive charging systems for electric vehicles - Part 1: General requirements: Conductive charging systems for electric vehicles - Part 1: General requirements
- Supply of external peripherals: Supply of external peripherals
- Number of outputs 1
- Input power: Input power
- Product type
AC splitter unit
- Protection class
I
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3583119 Phoenix Contact 1342893 CHARX AC-DIS/150KW AC splitter unit
User & Safety Instructions
User & Safety Instructions 3583119 Phoenix Contact 1342893 CHARX AC-DIS/150KW AC splitter unit
Description
Charx Power distribution, AC distribution unit for constructing DC charging stations, 19" rack mounting, output 400 V AC...480 V AC / 54 A, 6 A
